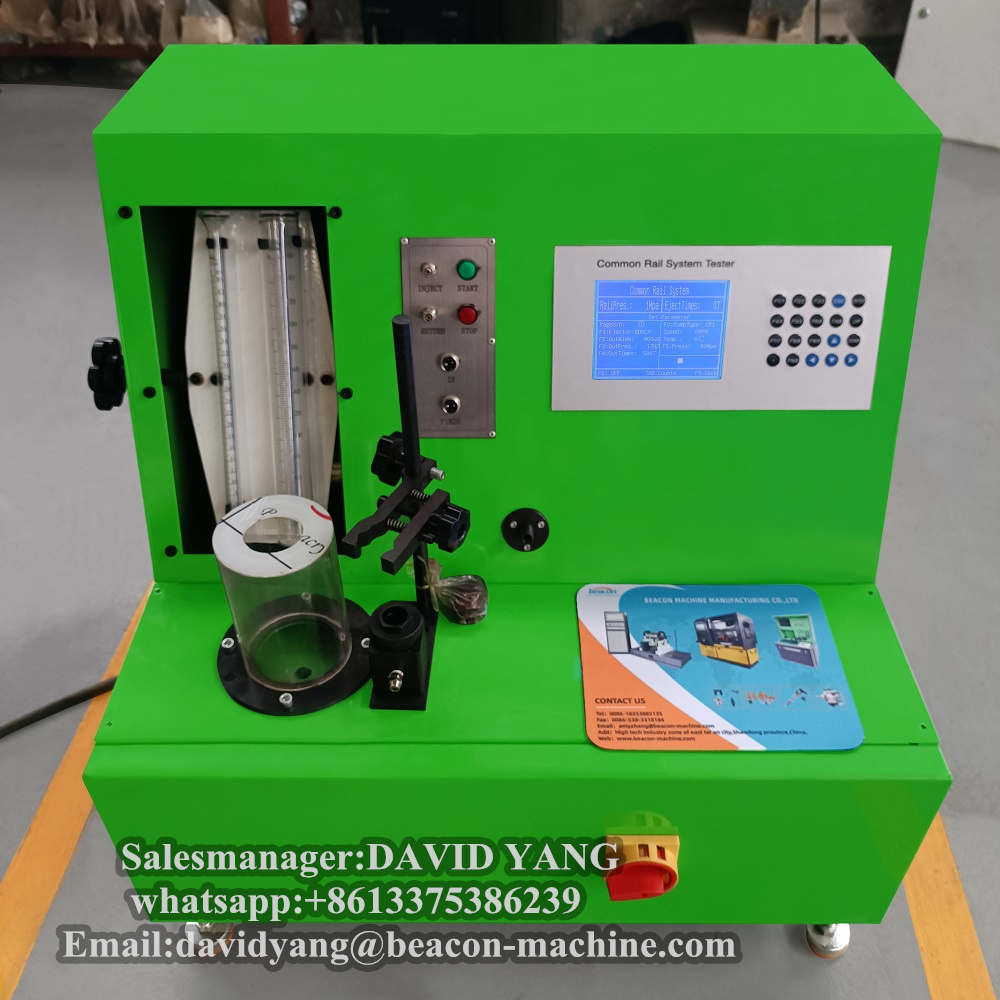

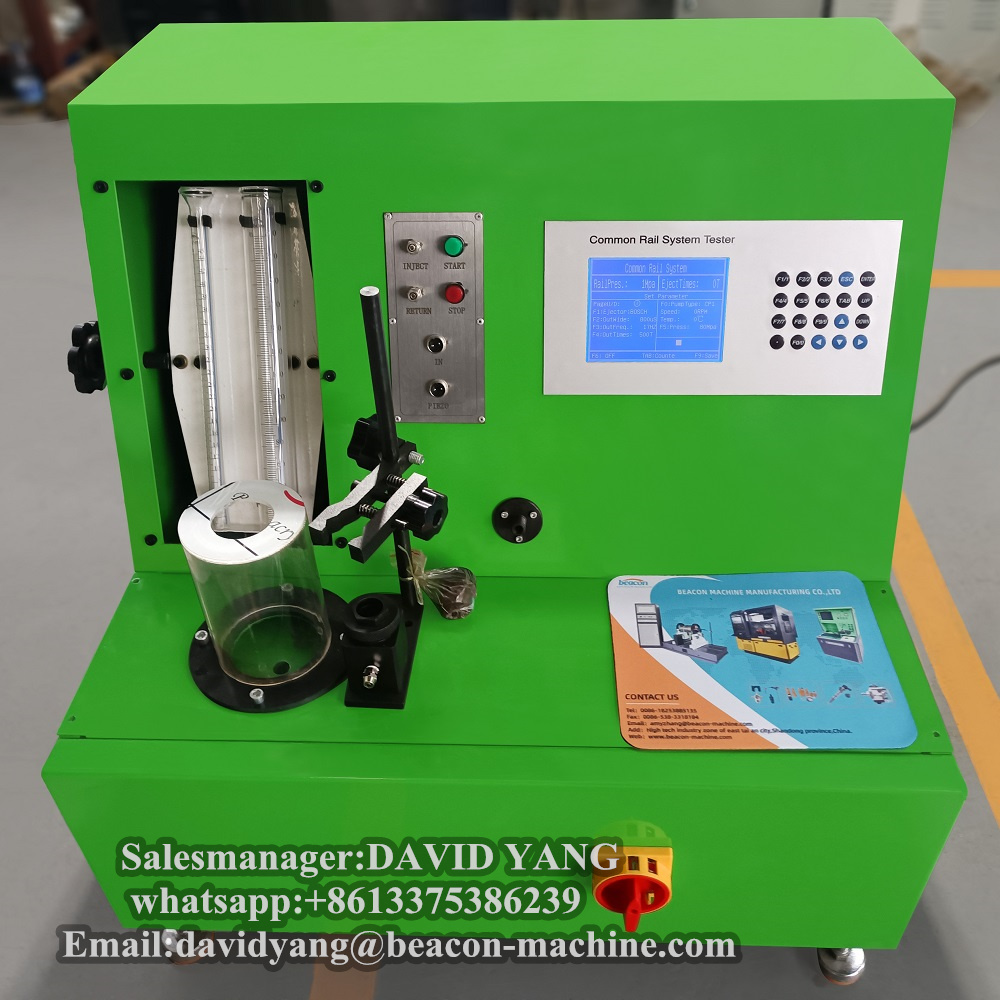

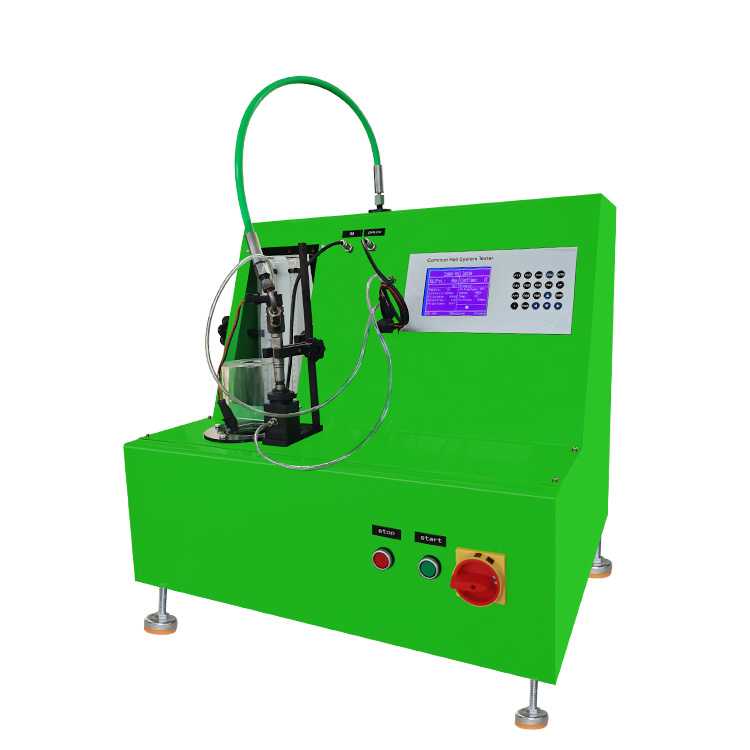

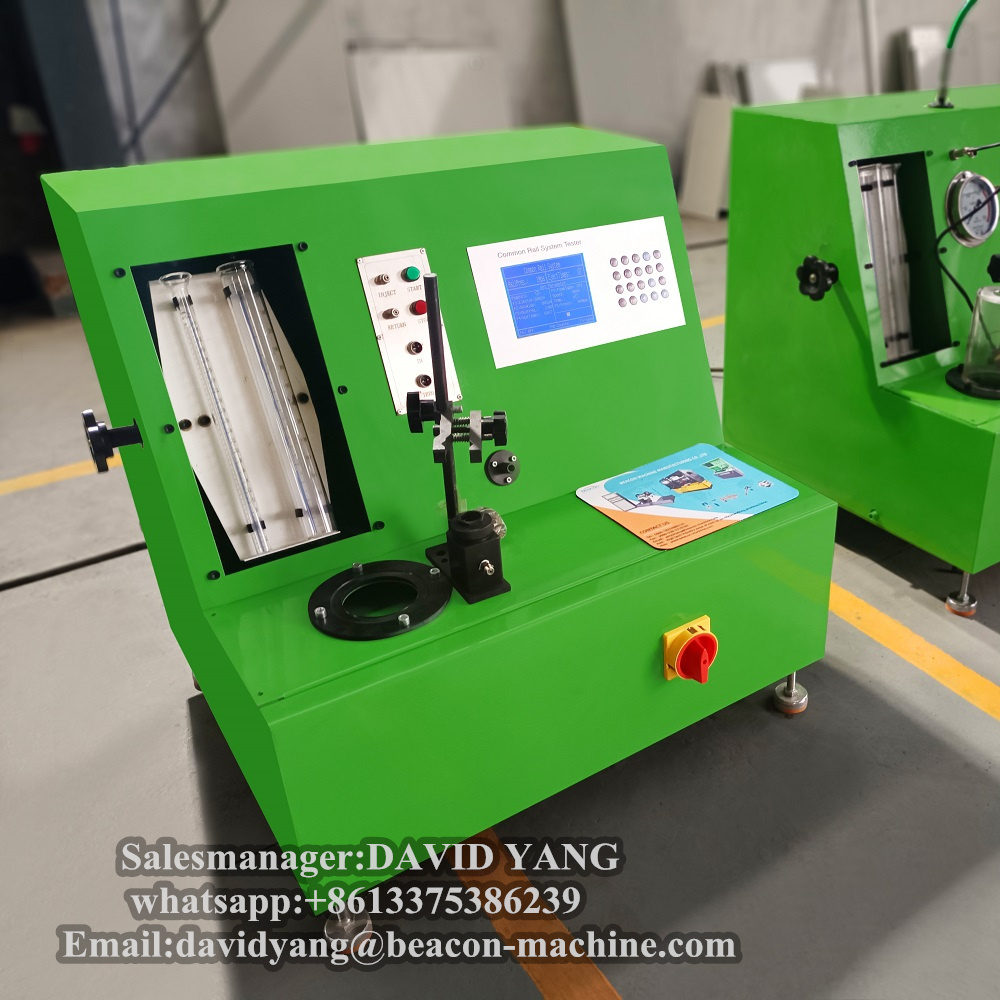

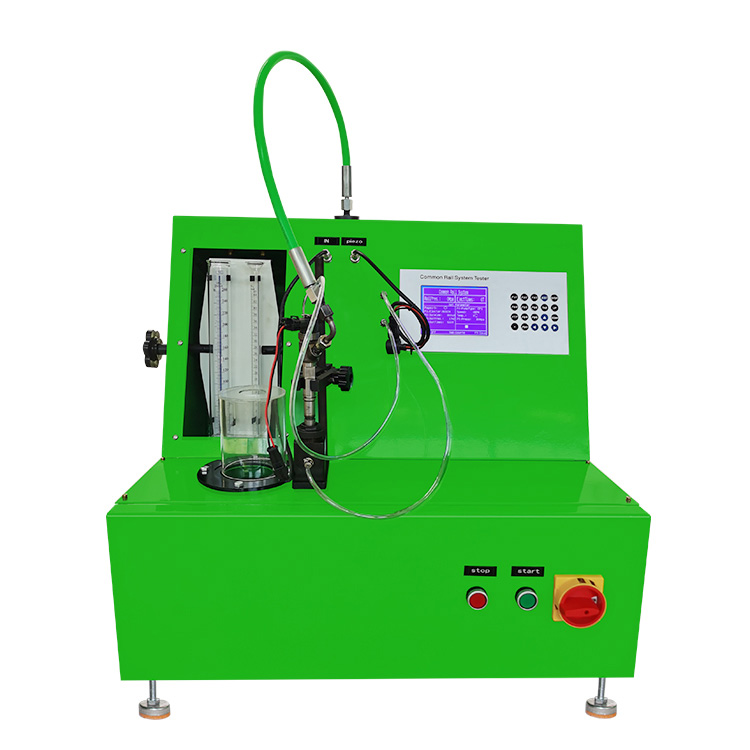

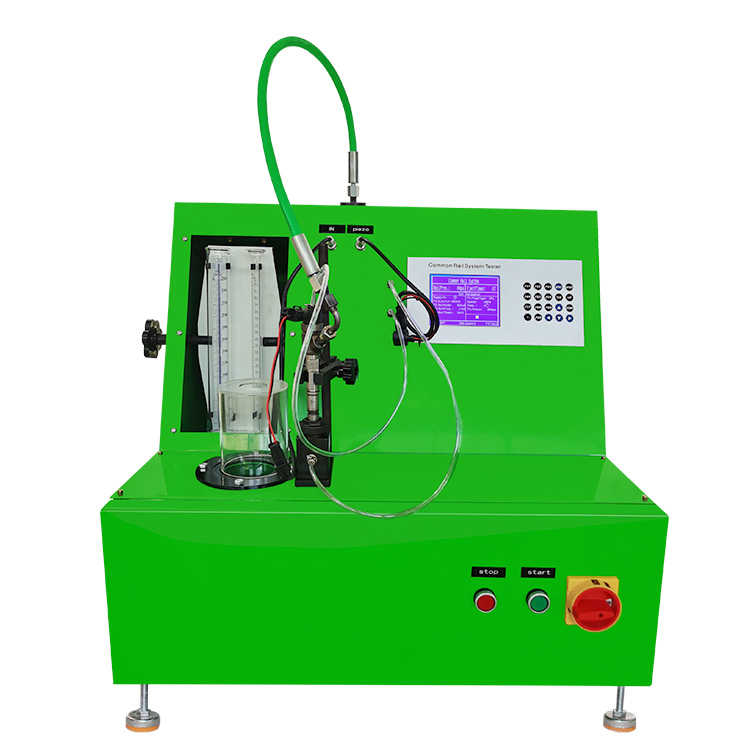

EPS100 common rail injector test bench

●Introduction
●Characteristic
●Main parameter



EPS100 common rail injector test bench, pressure controlled automatically, display the frequency and pulse at the screen. It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO. Advanced technology, steady performance, precise measurement.

Injector testing: leakage, injection oil quantity, and back oil quantity(pre-injection, Idling, emissions, full load)

Characteristic
1. Controlled by the industrial computer in real-time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4 tactile LCD screen;
3. More than 7600 kinds of injectors data can be searched and used.
4. It is installed BOSCH common rail pump to provide 0~2000 bar
5. Rail pressure can be tested in real-time,
6. Provide pressure overload to protect
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.
9. Protection function of short-circuiting.
10. Precise measurement, easy operation, low noise.

11.Frequency converter inside to keep the RPM.

Main parameter
1. output power:1.5KW
2. power voltage:220V 1phase
3. motor speed: 0-4000RPM
4. Oil pressure:0-2600bar
5. flow measure range: 0-600ml/1000times
6. flow measurement accuracy: 0.1ml
7. temperature control range: 40+-

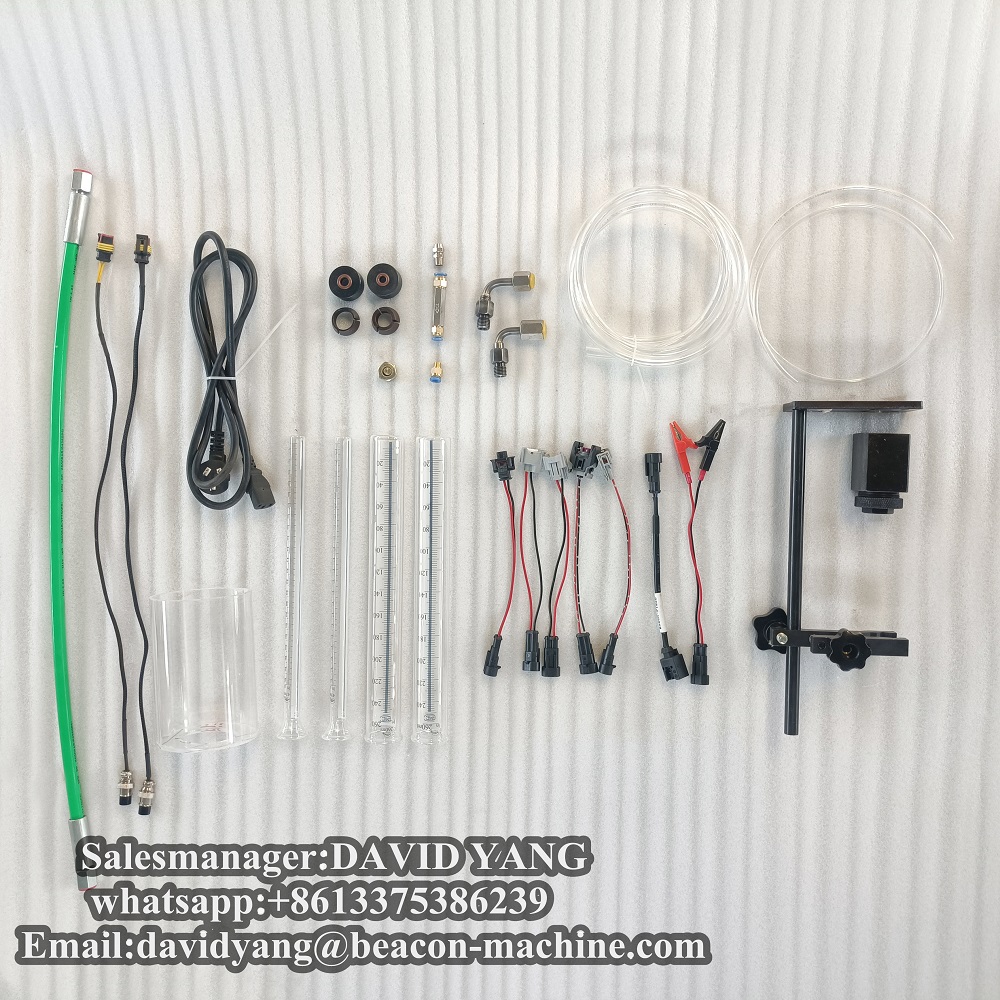

ACCESSORIES:
