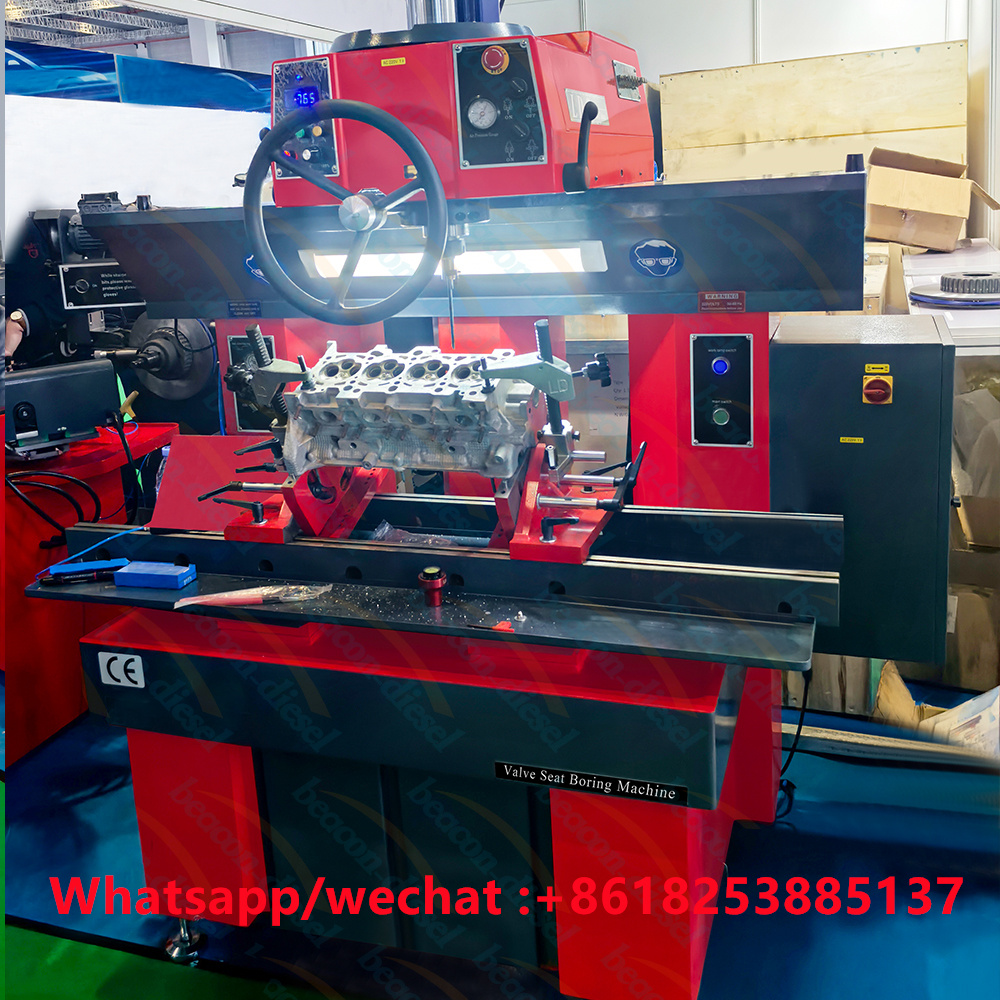

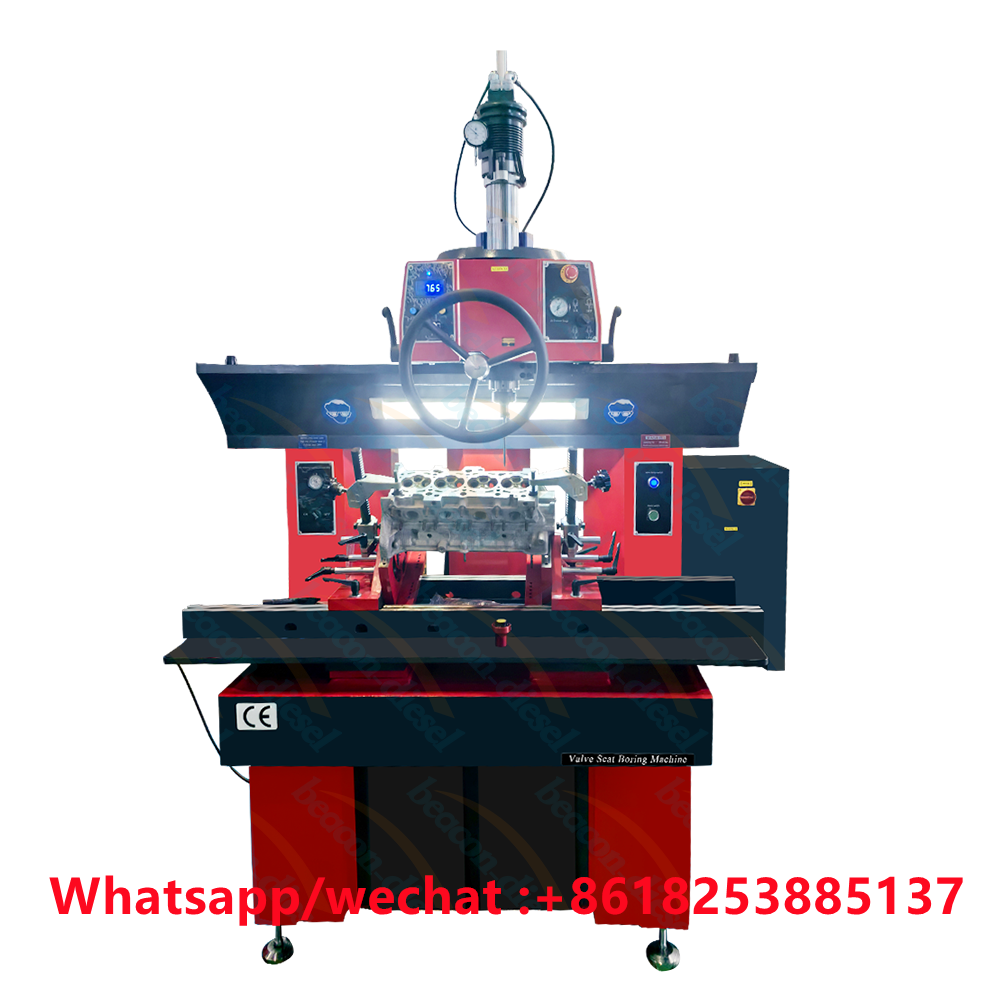

A new generation of valve seat boring machine is designed for high precision boring ofspecial harovalve seat and guiding tubes of the new energy gas engine. Bring you an unparalleled machiningexperience!
0086-18253885135

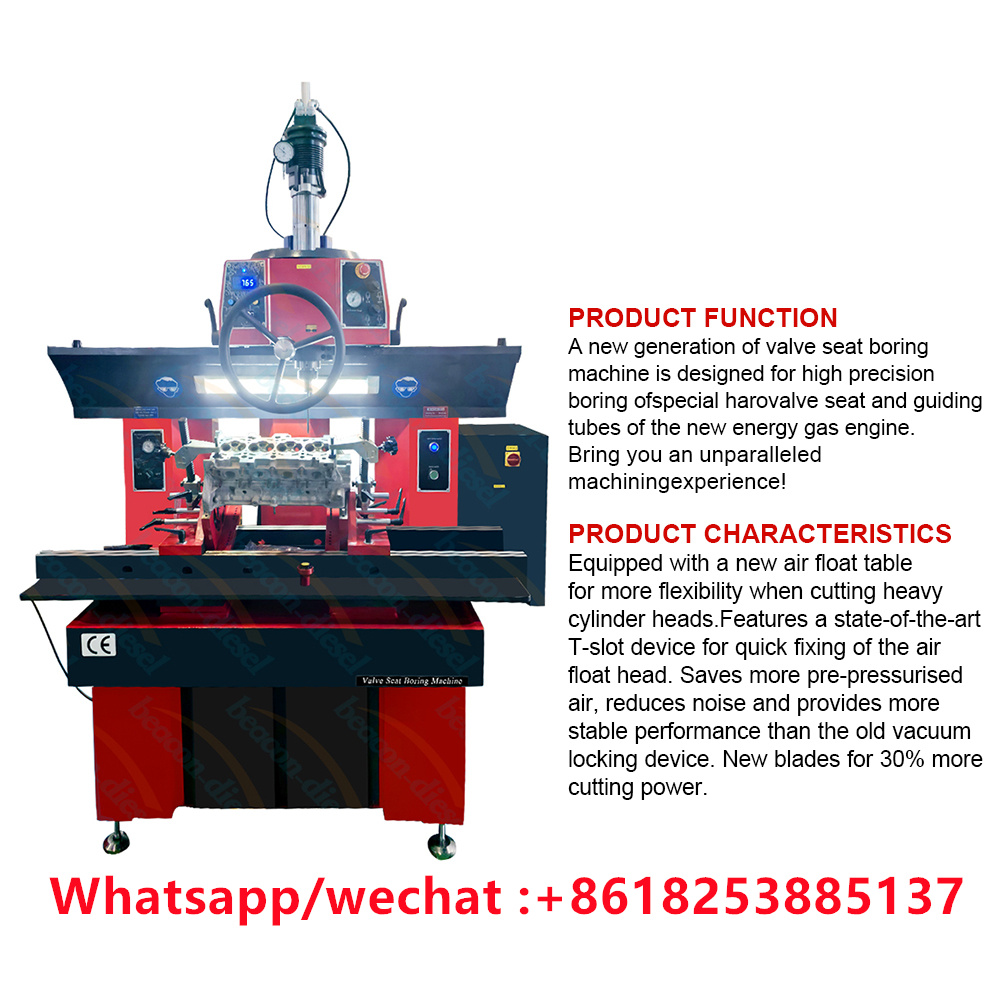

2.Product function:
A new generation of valve seat boring machine is designed for high precision boring ofspecial harovalve seat and guiding tubes of the new energy gas engine. Bring you an unparalleled machiningexperience!
3.Product characteristics:
Equipped with a new air float table for more flexibility when cutting heavy cylinder heads.Features a state-of-the-art T-slot device for quick fixing of the air float head. Saves more pre-pressurised air, reduces noise and provides more stable performance than the old vacuum locking device. New blades for 30% more cutting power.
|

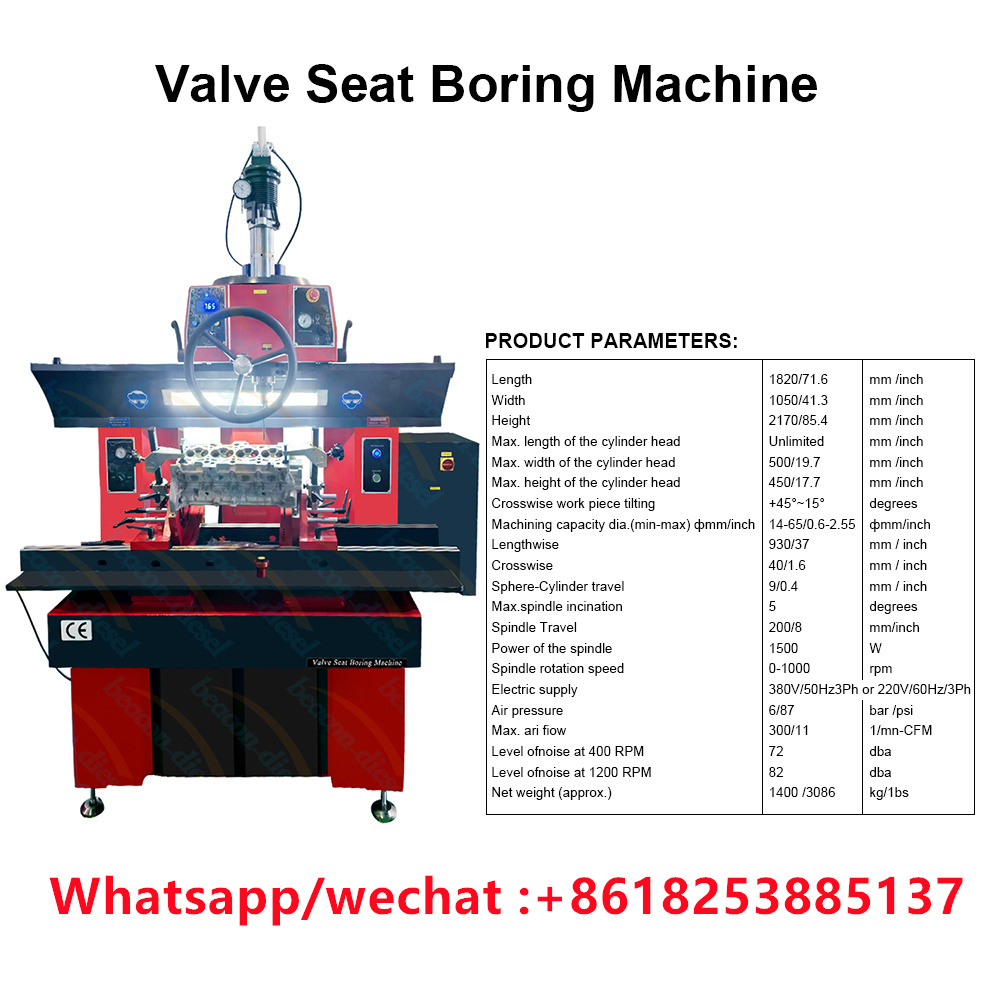

Product parameters: |
||
|
Items |
Parameter |
Unit |
|
Length |
2000 |
mm /inch |
|
Width |
2100 |
mm /inch |
|
Height |
2250 |
mm /inch |
|
Max. length of the cylinder head |
Unlimited |
mm /inch |
|
Max. width of the cylinder head |
500/19.7 |
mm /inch |
|
Max. height of the cylinder head |
450/17.7 |
mm /inch |
|
Crosswise work piece tilting |
+45°~15° |
degrees |
|
Machining capacity dia.(min-max) фmm/inch |
14-70/0.6-2.29 |
фmm/inch |
|
Lengthwise |
1000/39 |
mm / inch |
|
Crosswise |
40/1.6 |
mm / inch |
|
Sphere-Cylinder travel |
9/0.4 |
mm / inch |
|
Max.spindle incination |
5.5 |
degrees |
|
Spindle Travel |
200/8.5 |
mm/inch |
|
Power of the spindle |
1800 |
W |
|
Spindle rotation speed |
20-1000 |
rpm |
|
Electric supply |
380V/50Hz3Ph or 220V/60Hz/3Ph |
|
|
Air pressure |
6/87 |
bar /psi |
|
Max. ari fiow |
300/11 |
1/mn-CFM |
|
Level ofnoise at 400 RPM |
65 |
dba |
|
Level ofnoise at 1200 RPM |
82 |
dba |
|
Net weight (approx.) |
1750/3858 |
kg/1bs |
