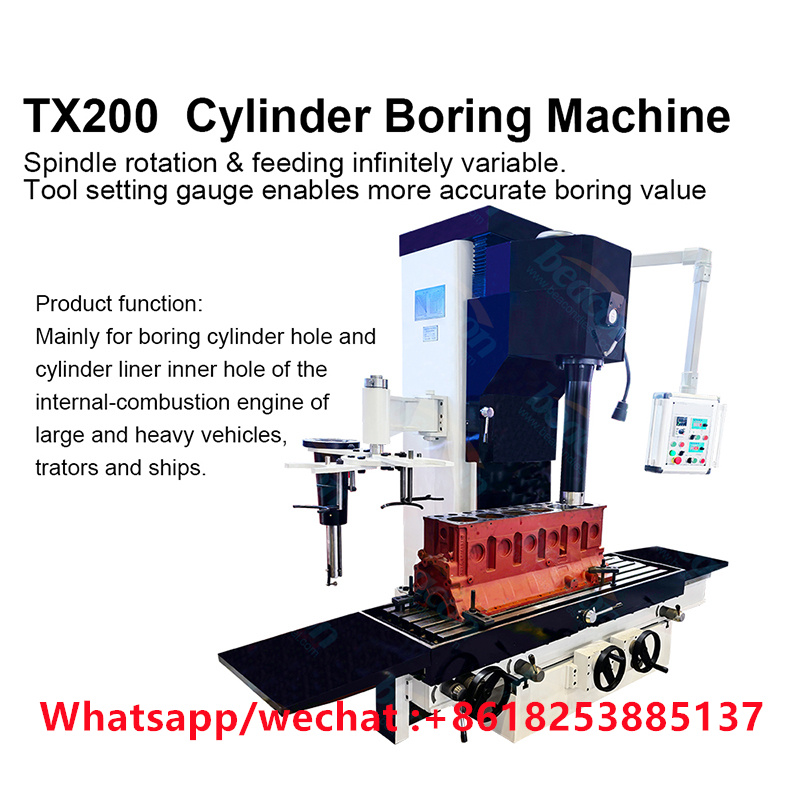

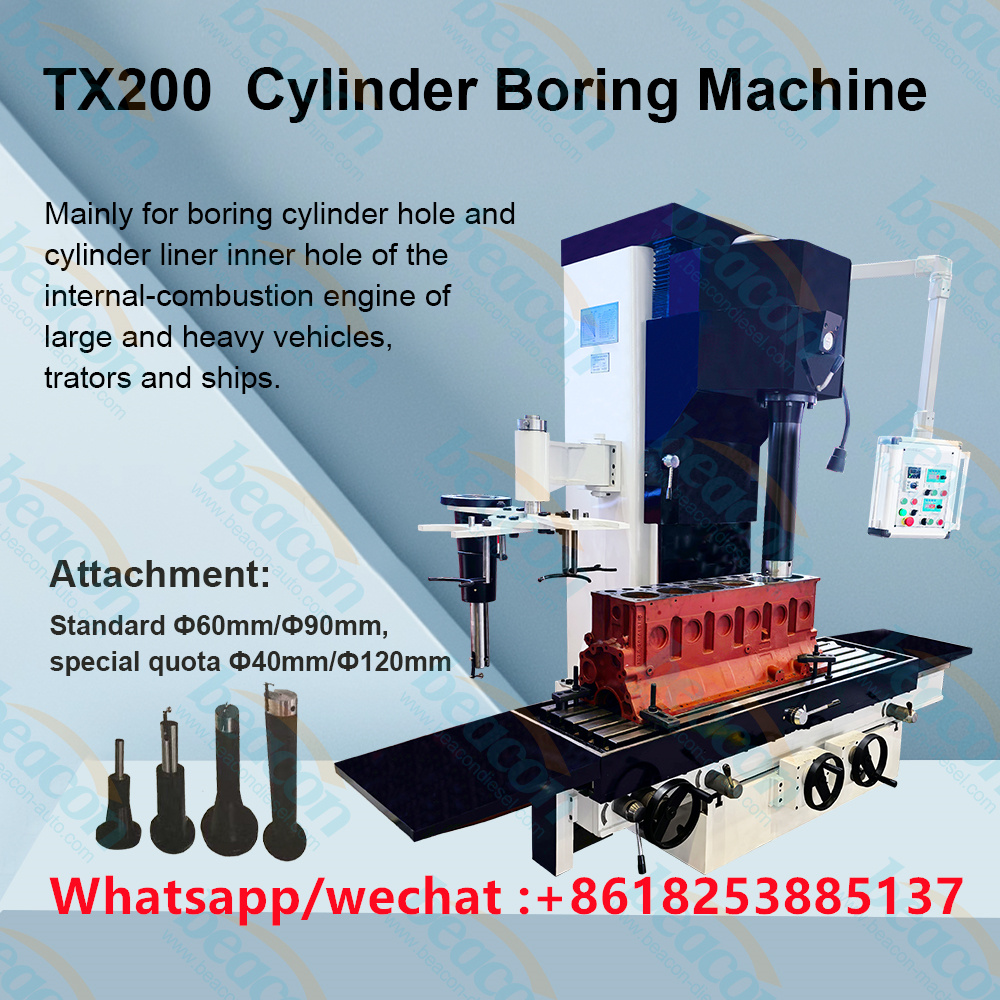

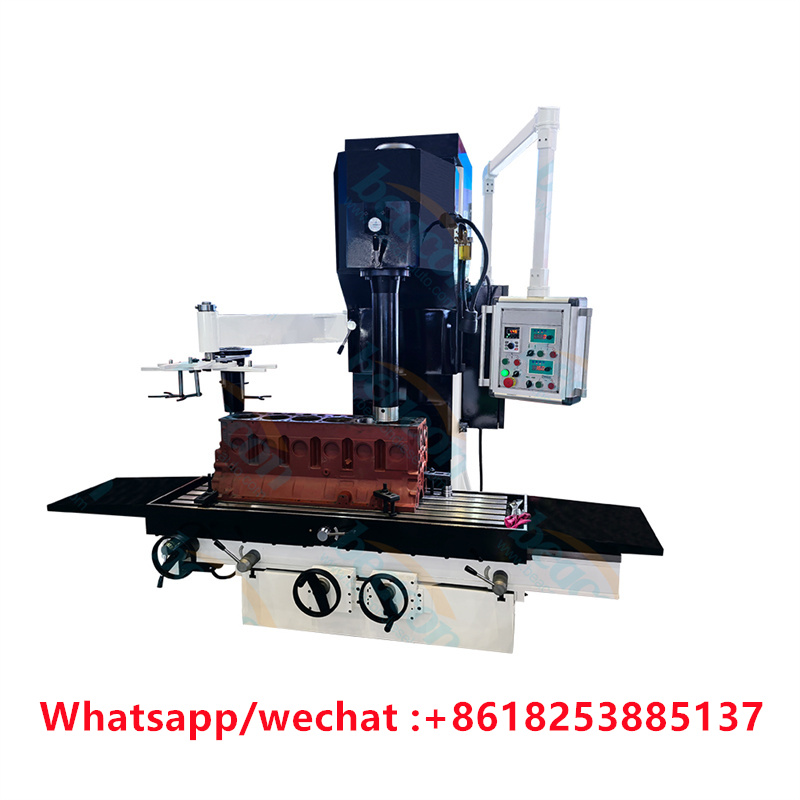

TX200 machine for boring cylinder hole and cylinder liner inner hole of the internal-combustion engine of large and heavy vehicles, trators and ships.
0086-18253885135
1. Product function:
Mainly for boring cylinder hole and cylinder liner inner hole of the internal-combustion engine of large and heavy vehicles, trators and ships.
2. Product characteristics:
Spindle rotation & feeding infinitely variable.
Tool setting gauge enables more accurate boring value

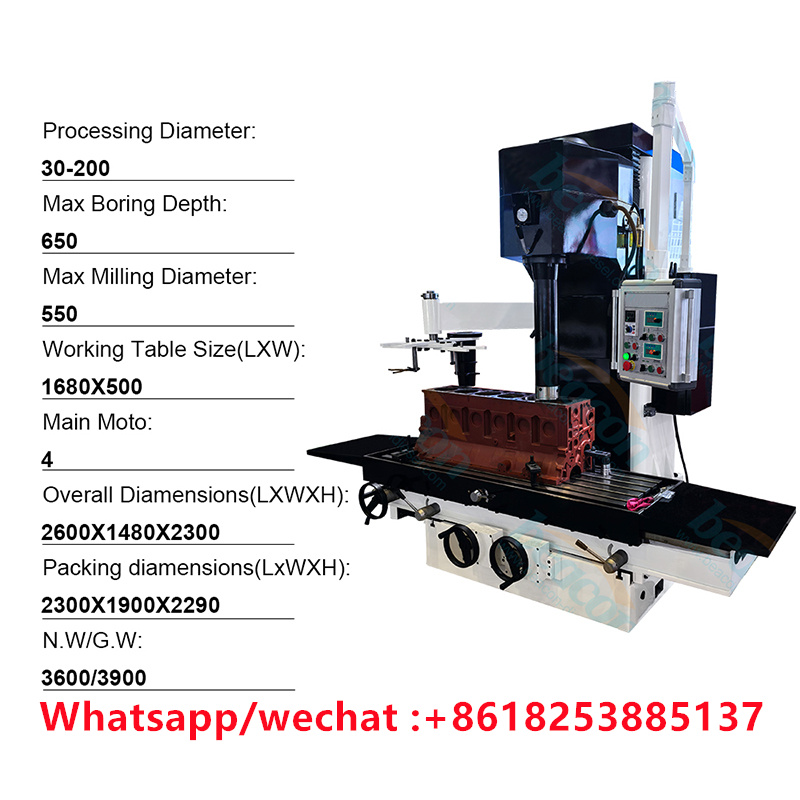

3. Product parameters:
|
model |
TX200 |
|
Processing Diameter |
30-200 |
|
Max Boring Depth |
550 |
|
Max Milling Diameter |
350 |
|
Spindle Speed (r/min) |
50-600 |
|
Spindle Feeding Capacity (mm/r) |
|
|
Spindle Feed Speed (mm/min) |
5-900 |
|
Rapid Moving Speed of the Spindle (mm/min) |
900 |
|
Distance Between Spindle End Face and Table |
0-700
|
|
Distance Between Spindle Axis and Carriage Vertical Plane |
345
|
|
Longitudinal Feed of Worktable (mm/min) |
32-1200 |
|
Rapid Moving Speed of the Table Longitudinal Travel |
1200 |
|
Max Longitudinal Travel of the Working Table |
1500 |
|
Max Corss Travel of the Working Table |
150 |
|
Working Table Size(LXW) |
1680X500 |
|
Main Motor |
4 |
|
Overall Diamensions(LXWXH) |
2600X1480X2300 |
|
Packing diamensions(LxWXH) |
2300X1900X2290 |
|
N.W/G.W |
3600/3900 |
