CR311 COMMON RAIL DIESEL INJECTOR TEST BENCH

●INTRODUCTION
●MAIN FUNCTION
●TECHNICAL  PARAMETER

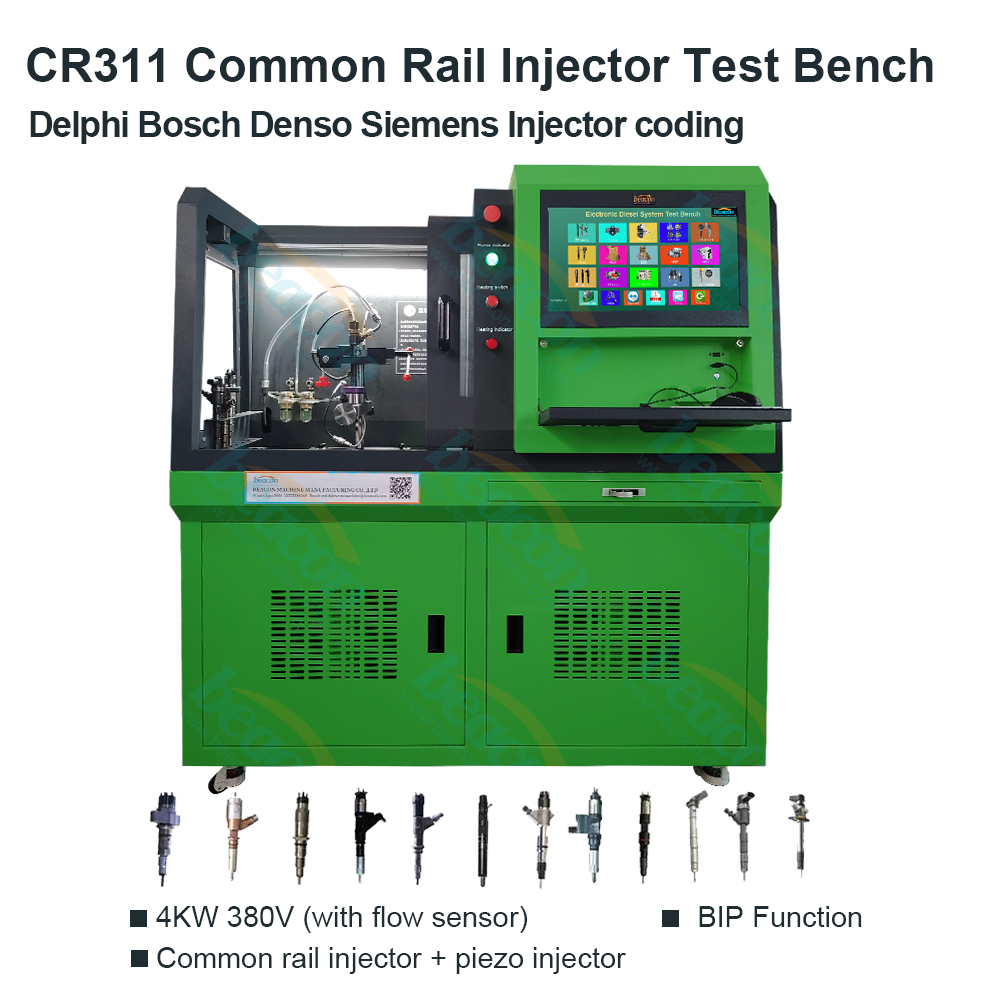

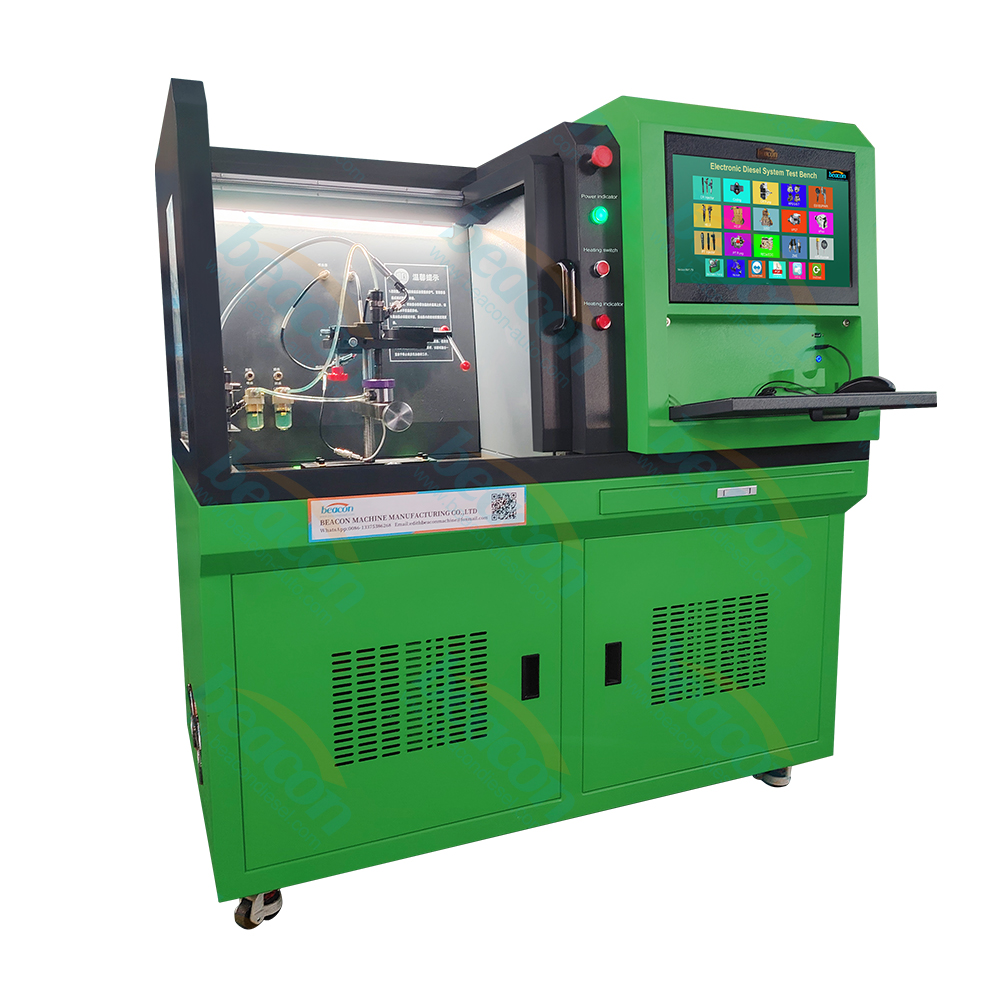

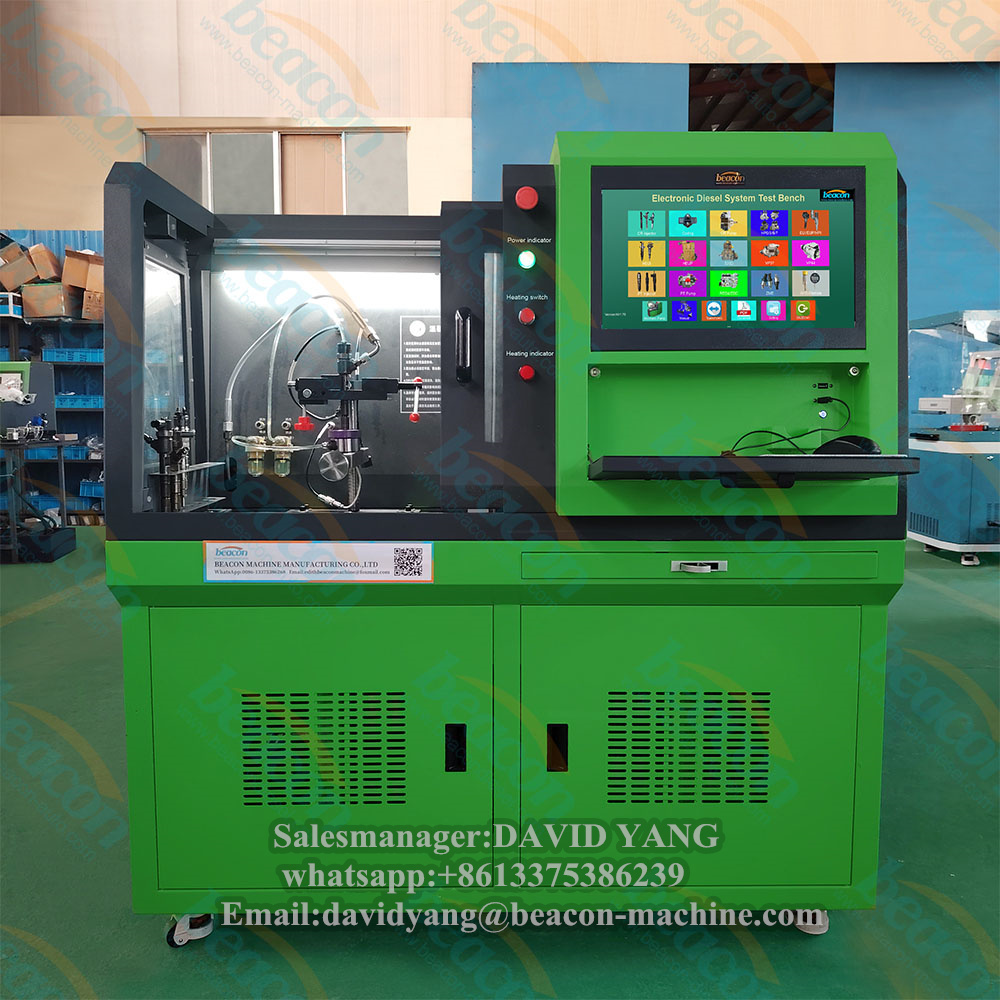

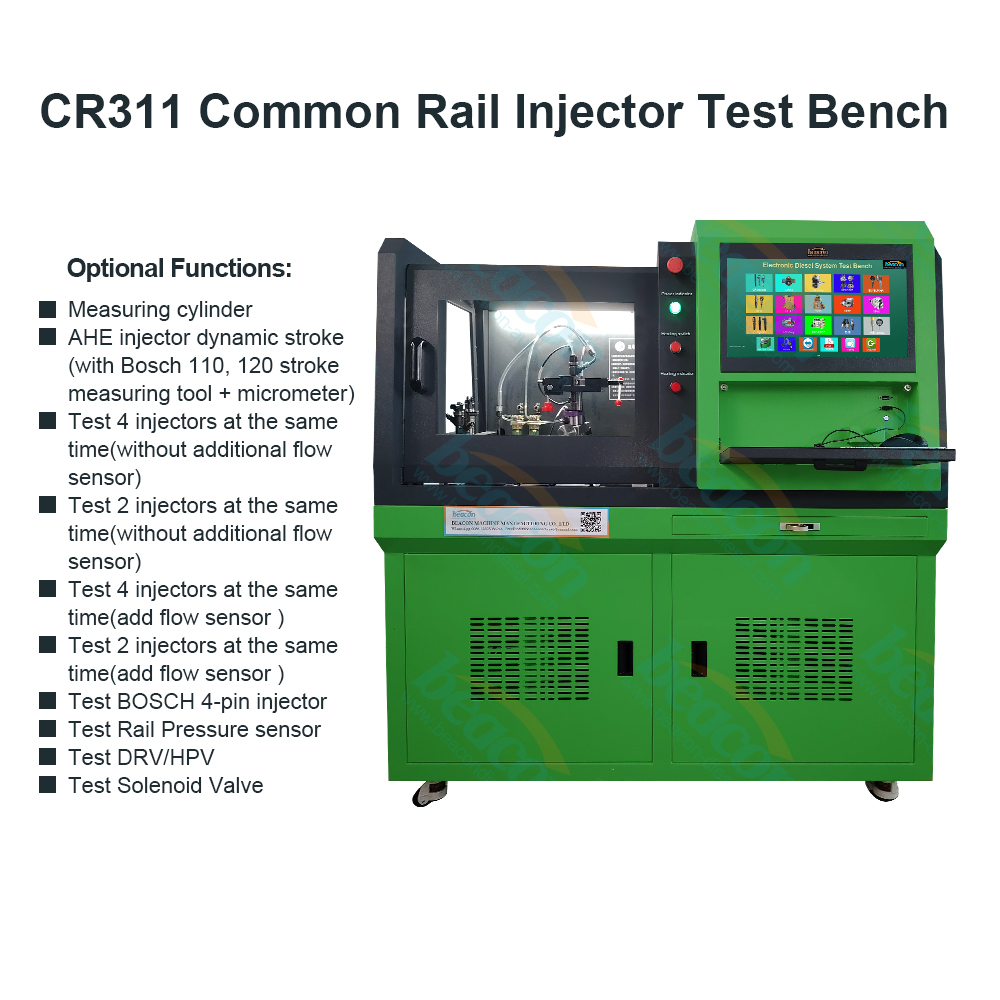

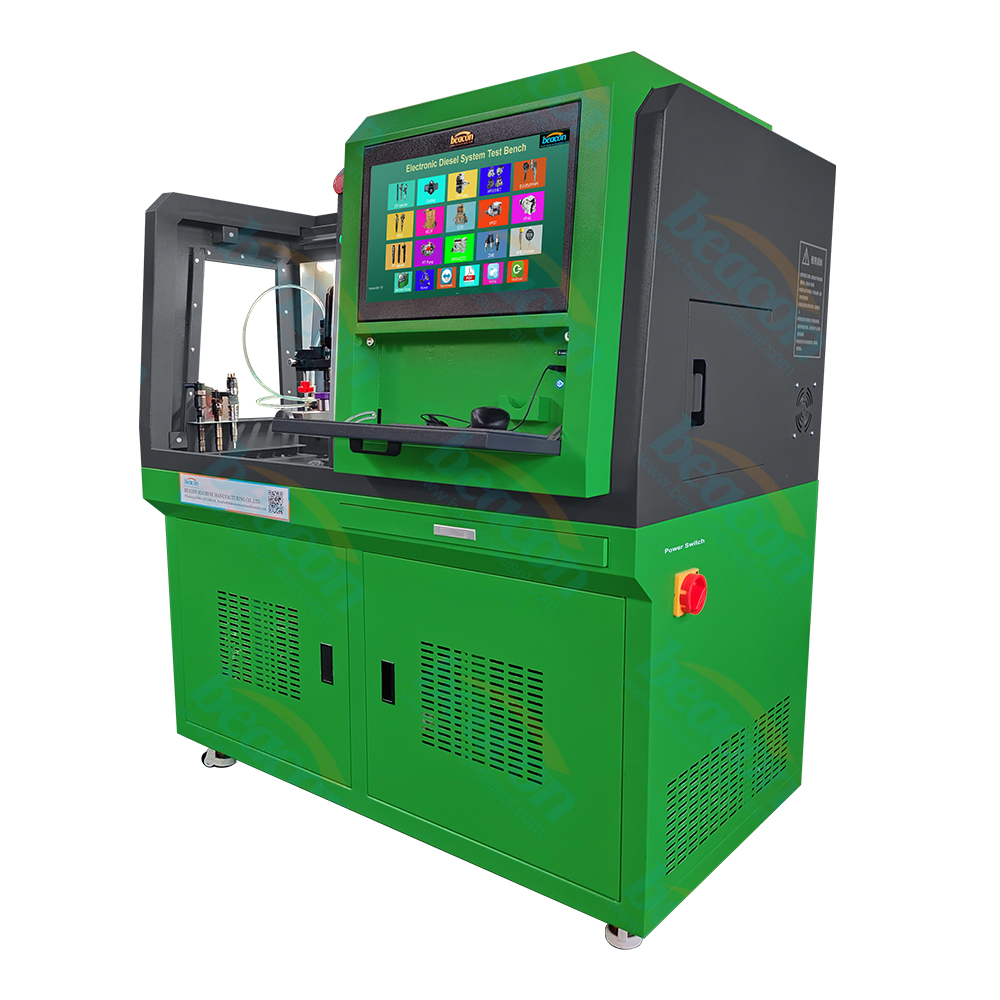

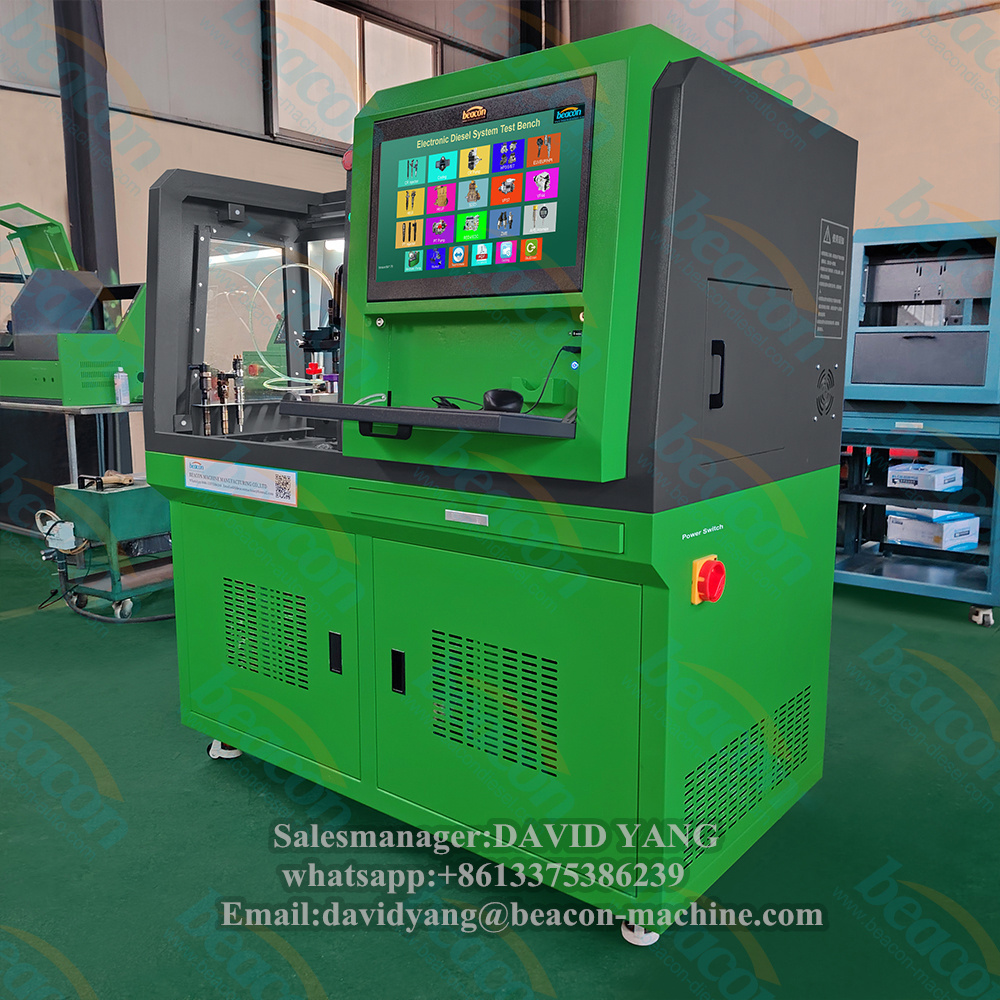

CR311 COMMON RAIL DIESEL INJECTOR TEST BENCH is ourlatest independent researched special device to test the performance of high-pressure common rail injector, controlled by industrial computer,Windows operating system. The oil quantity is measured by sensor and displayed on computer screen(Electronic fuel delivery system). All data can be searched and saved. It adopts BOSCH(DENSO) original common rail pump to provide 0~2000 bar for rail pressure(DENSO). The rail pressure can be adjusted automatically, and it also provide pressure overload protect.It can test common rail injector of BOSCH, SIEMENS, DELPHI, DENSO.Advanced technology, steady performance, precise measurement and convenient operation.

2.MAIN FUNCTION
1. Controlled by industrial computer in real time, Windows operating system.
2. Oil quantity is measured by sensor and displayed on 10.4tactile LCD screen;
3. More than 7000 kinds of injector data can be searched and used.
4. It is installed BOSCH(DENSO) common rail pump to provide 0~2000 bar for denso rail.
5. Rail pressure can be tested in real time,
6. Provide pressure overload protect by DENSO rail.
7. Pulse and frequency of the injector can be adjusted.
8. Injection time can be set.

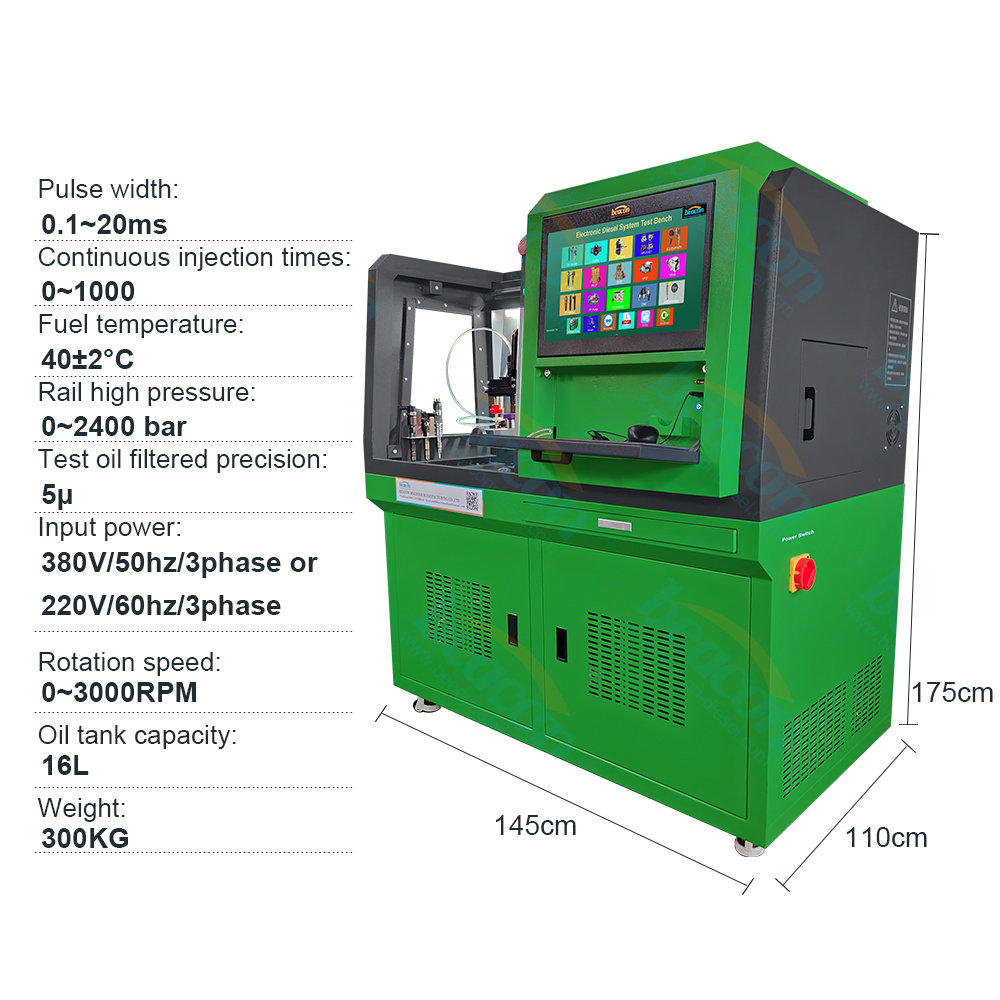

3.TECHNICAL  PARAMETER
Pulse width: 0.1~20ms
Continuous injection times: 0~1000
Fuel temperature 40±2°C
Rail high pressure 0~2400 bar
Test oil filtered precision 5μ
Input power 380V/50hz/3phase or 220V/60hz/3phase
Rotation speed 0~3000RPM
Oil tank capacity 16L

Weight 300KG.
