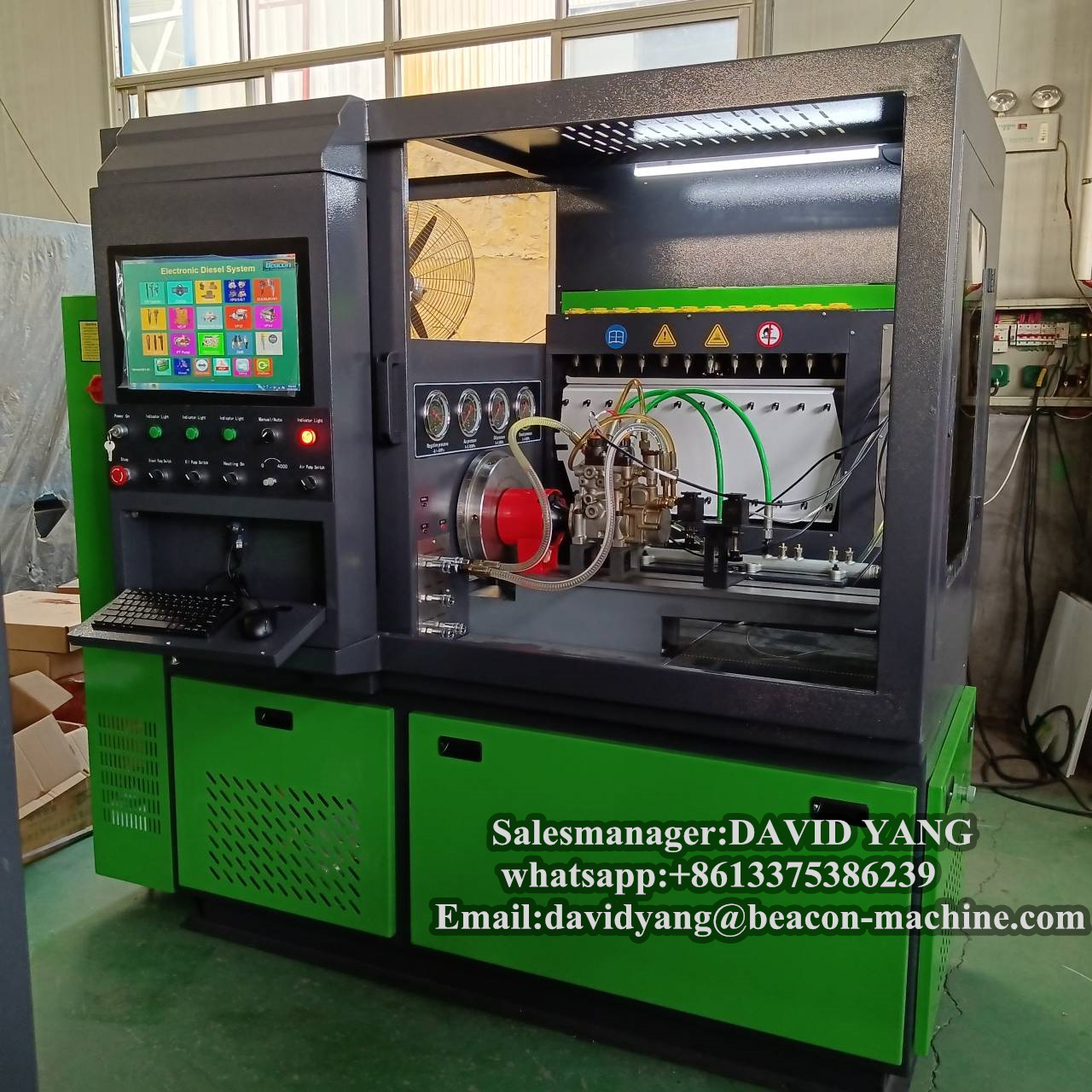

MAIN CONFIGURATION
1.Industrial PC with touch screen
2.Compressor cooling
3.Oil tank(including heating,refrigeration,liquid level detection,temperature detection)
4.Diesel tank(including heating,refrigeration,liquid level detection,temperature detection)
5.Flow meter(German ZDM) detecting the fuel injection flow rate
6.Flow meter(German ZDM) detection of common rail pump
7.Flow meter(German KRACHT) to detect oil flow
8.Flow meter(German KRACHT) detection of diesel oil return flow
9.2sets of BOSCH common rail +DRV
10.Oil tank temperature sensor
11.Diesel fuel tank temperature sensor
12.Diesel supply temperature sensor
13.Diesel return temperature sensor
14.Oil pressure sensor
15.Diesel supply pressure sensor
16.Diesel return pressure sensor
17.Diesel pump internal pressure sensor
18.Oil pressure closed loop control module

19.The device is convenient to move and position the roller

TECHNICAL PARAMETERS
1.Host power: 15kw
2. Spindle speed: 0-3000r / min
3. Host center height: 128 cm
4. Wheel oil pump: 10L / min
5. Oil supply pressure: 0-0.4mpa
6. Fuel tank capacity: 40L
7. Oil tank capacity: 20L
8. High pressure oil supply 0-250mpa
9. Oil supply: 0-35mpa
10. Hotbed control: 40 ° C ± 2 ° C
11.Oil hotbed: 40 ° C ± 2 ° C
12.Drive voltage 0-180v
13. Drive current 0-25v
14. Input voltage 220v-380v (according to customer needs)
15.Overall dimensions (cm)  225×142×218
16.Weight (KG):1250

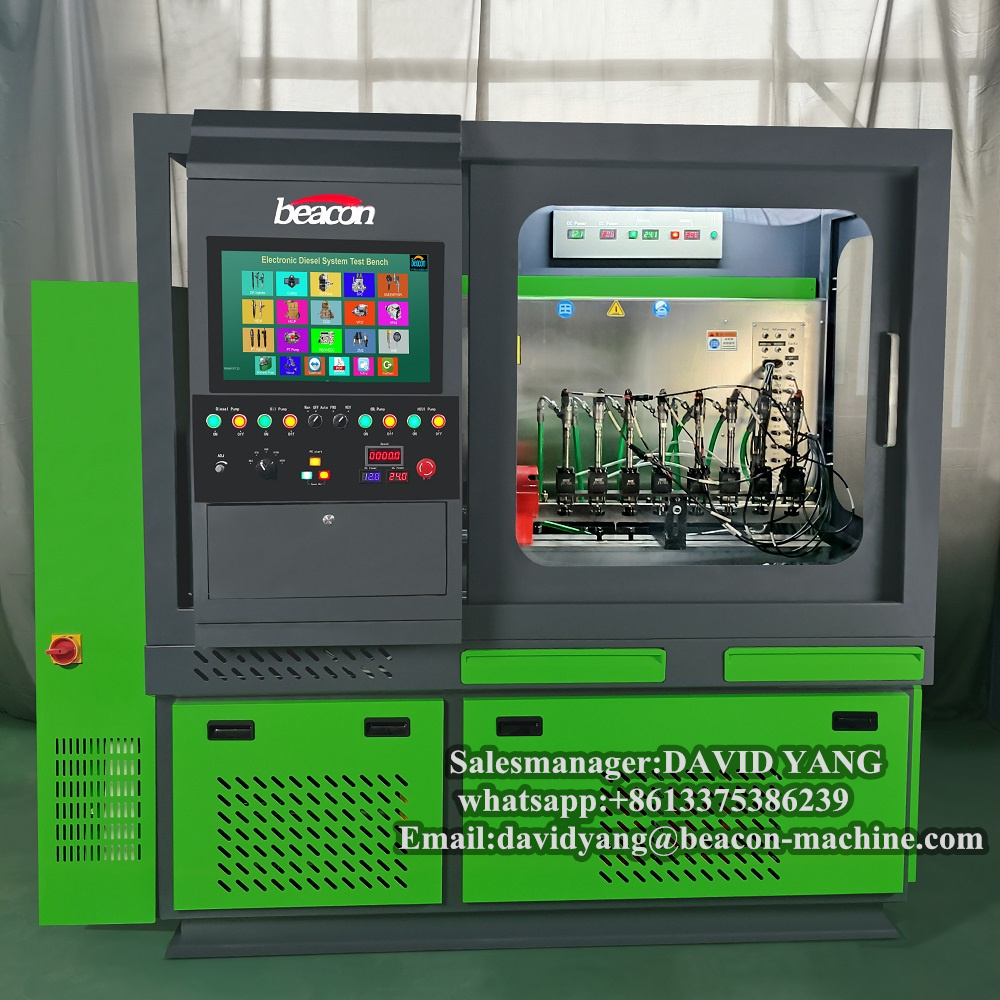

Test 8 injector at same time (With 8 flowmeters)

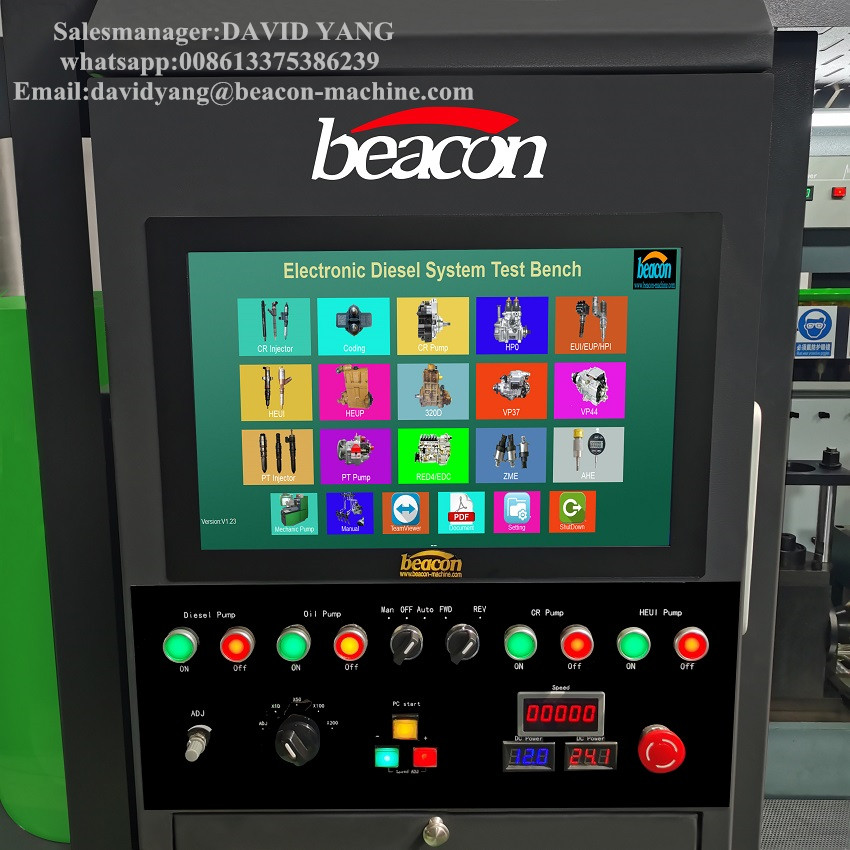

System Interface:

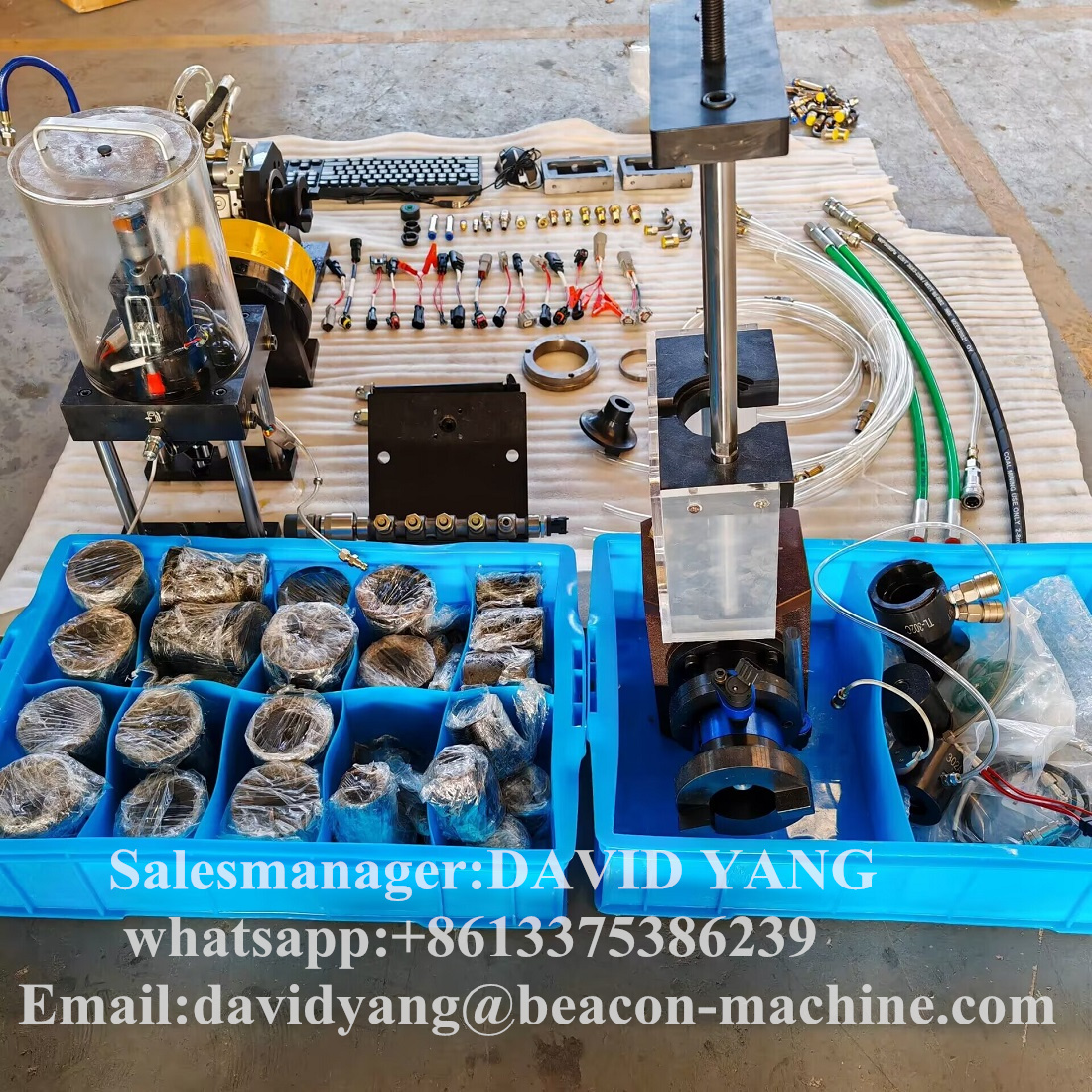

ACCESSORIES:
