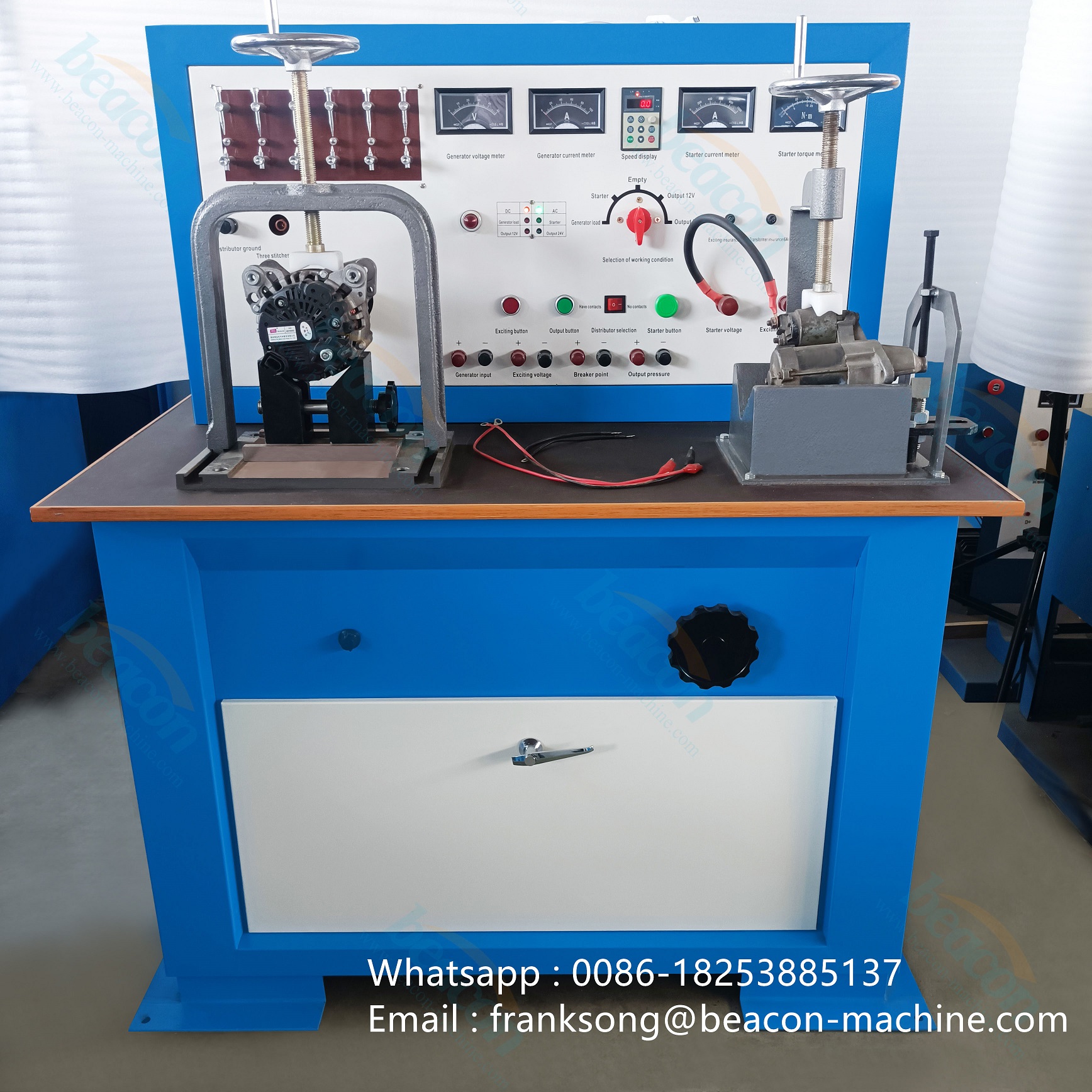

BCQZ-2B Electrical Appliance Universal Test Bench

 General introduction

It is used to test electrical appliances of automobile like generator, starter, distributor, ignition coil, electric wiper and electric horn, ignition coil, etc.

This test bench uses variable frequency speed regulation ,pointer instrument display.

Advantages

1.It uses variable frequency speed regulation

2.It displays result by pointer instrument .

3.It is easy to learn and operate.

4.It is with fuse protection.

5.It is with indicator lamp following each step and warn you the problems.

6.It possesses high control sensitivity and strong controllability.

7.It is with charge fuction

Test items

Test Starter:  5.5 KW, (12V 24V 48V). 0-1000A,0-100N.M

Test Alternator & Generator:  1.5 KW, (12V 24V 48V), 5000RPM

Test generator: no load and load ,speed, voltage,current;

Test starter: no load, load, braking torque;

Test electronic regulator: regulate voltage and current, limit current;

Test distributor: ignition intensity, uniformity and ignition advance angle, applicable for testing distributor with contact or without contact;

Test battery: voltage; test electric horn: sound;

Test electric wiper: action;

Test ignition coil
