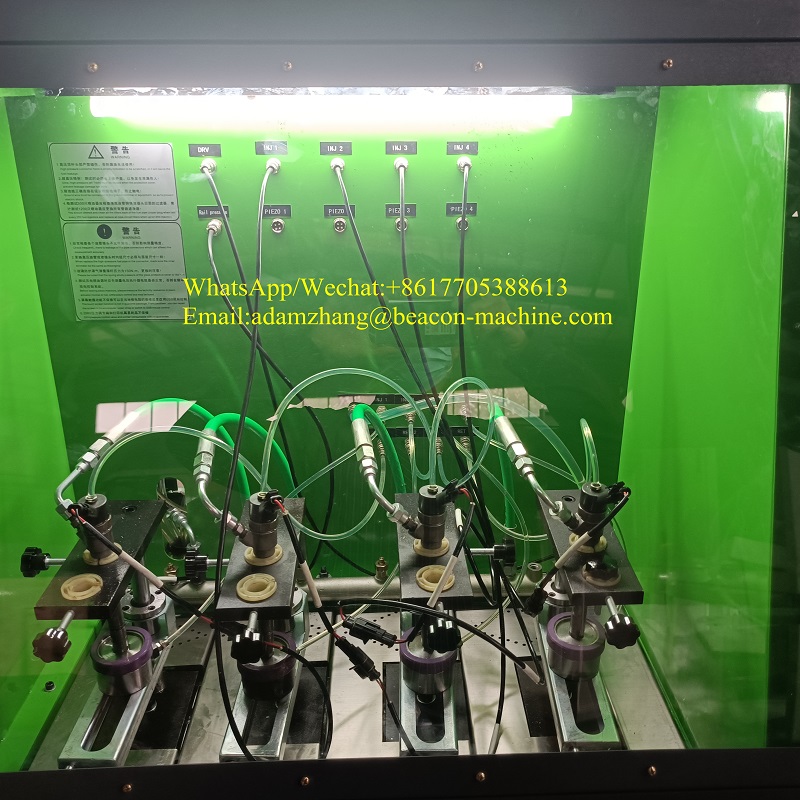

Common rail injector test bench CR304 is mainly used to test 4 common rail injectors and piezo injectors at the same time with 4 injector flow sensors.
0086-18253885135
| Product Name |

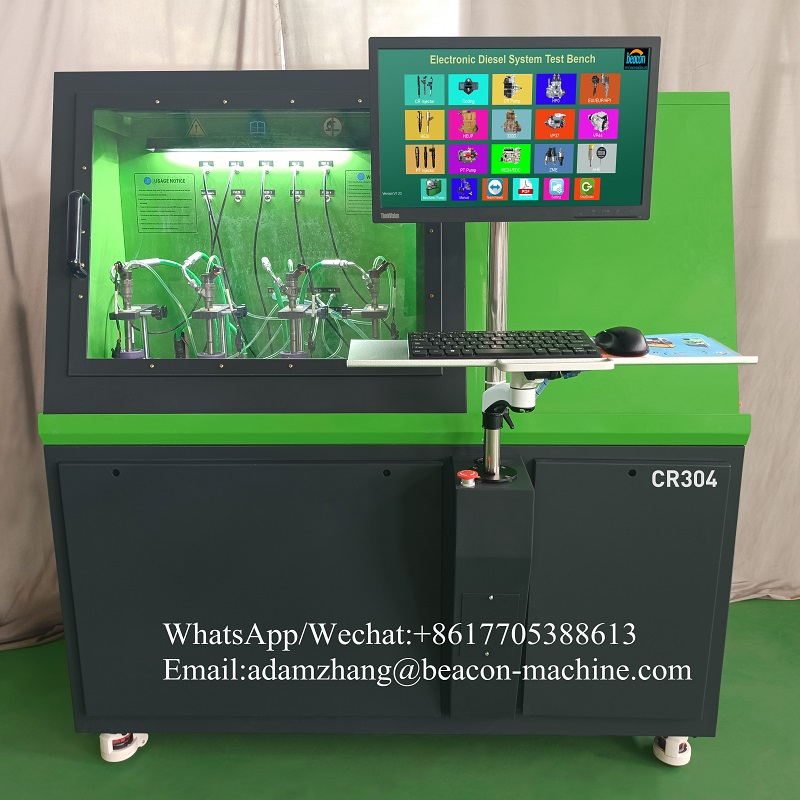

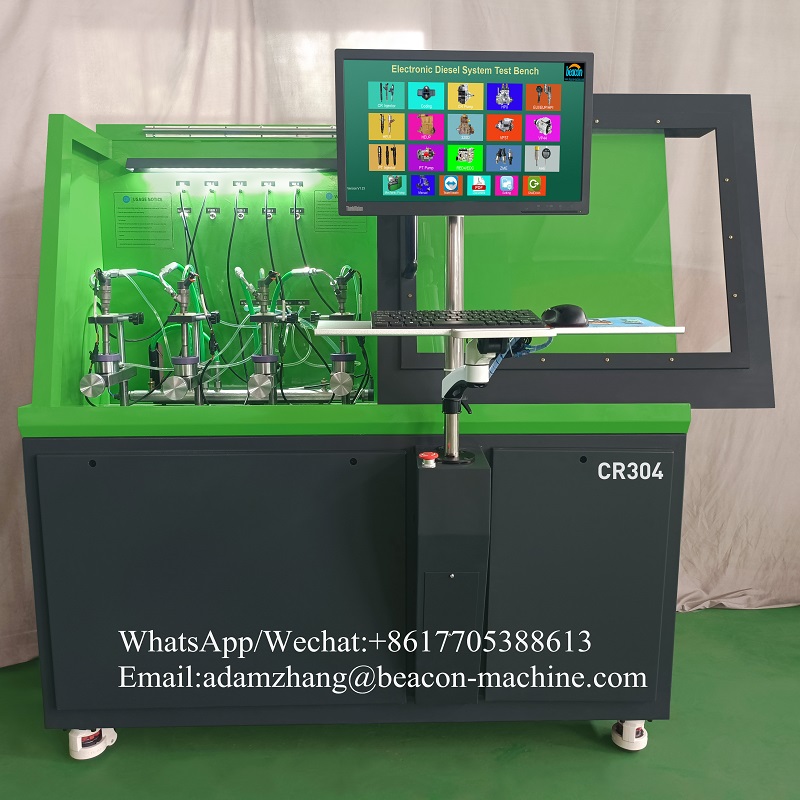

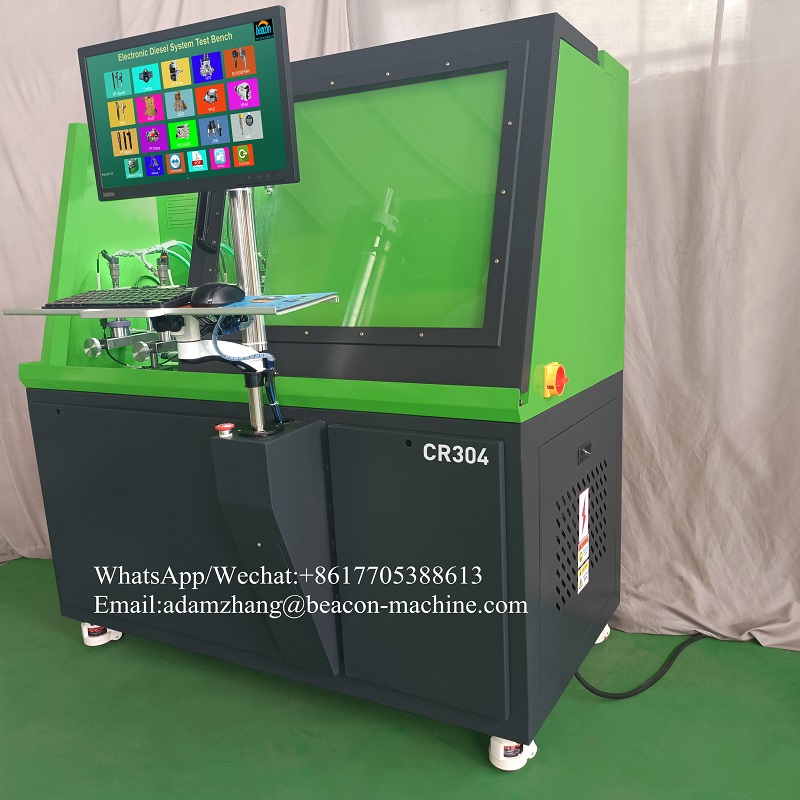

CR304 Common Rail Injector Test Bench
|
| Product Description |
1. High-Precision Flow Measurement, It Use Imported Flow Sensor, High Precision, Good Repeatability, 2. Test A Comprehensive, Test Injector Full Load, Medium Speed, Idle, Pre-Spray And Other Conditions Of The Fuel Injection; 3. It Can Test Bosch, Denso, Delphi, Siemens, Cat Etc. Injector; 4. Machine Low Noise, It Is Using Frequency Control, Speed Prefabricated, Low Noise, No Impact; 5. Advanced Control, A Key Selection, The Whole Process Of Detection; 6. Massive Data; 7. Open Data Management, The User Can Add The Injector Data Itself, Especially For The New Fuel Injector Standard Oil Calibration; 8. Injector Coding Function. |
| Standard features | 1. Test the common rail injector |
| 2. Test the piezo injector | |
| 3. Delphi, Denso, Bosch, Siemens and Cummins injector coding function | |

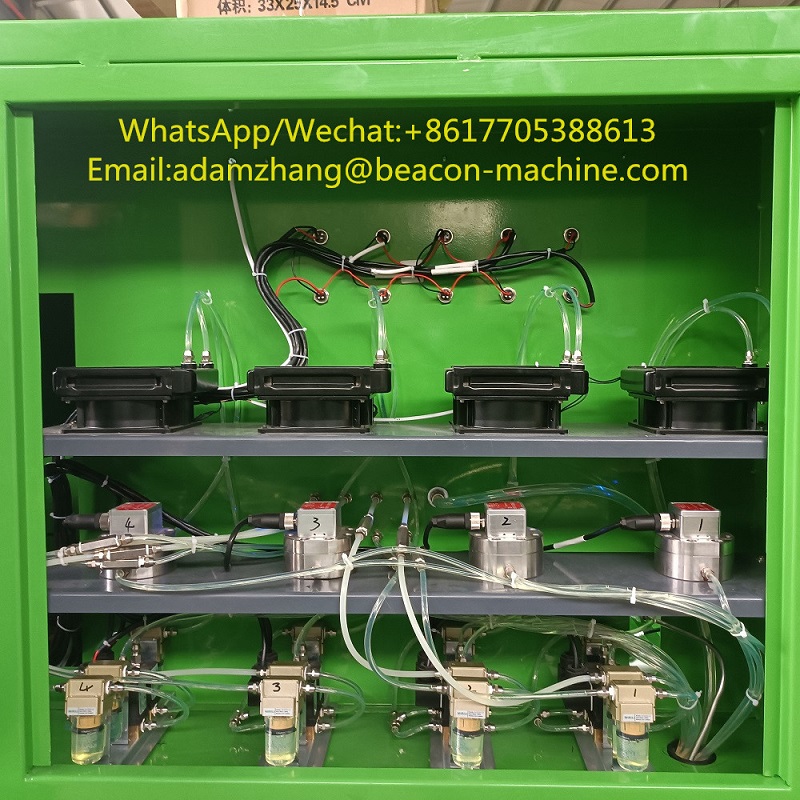

| 4.Simultaneously measure 4 injectors with 4 flow sensors | |
| Optional features | 1 BIP function |
| 2 AHE injector dynamic stroke (with Bosch 110, 120 stroke measuring tool + dial gauge) | |
| 3 Rail pressure sensor test | |
| 4 DRV/HPV test | |
| 5 Solenoid valve test | |
| 6 Bosch 4 pins injector test |
