EPS209 Common Rail Injector Tester Diesel Common Rail Injector Test Bench with Injector Coding

EPS209 common rail injector test bench is mainly used to test common rail injectors and piezo injectors,also it support injecor coding.


Make an inquiry

EPS209 Type high pressure common rail injector test bench is a common rail test product using all-in-one control system, real-time control and measurement. At the same time, it provides the control signal of Bosch, Denso, Delphi and Siemens to drive the high-voltage common rail injector for work. The system is equipped with standard drive signal parameters, and users can also adjust the parameters according to their actual situation and save them. Such as pressure, time, speed and other parameters, all LCD screen display, reliable work, high control accuracy. It is the ideal equipment for diesel automobile, internal locomotive maintenance, production and testing.

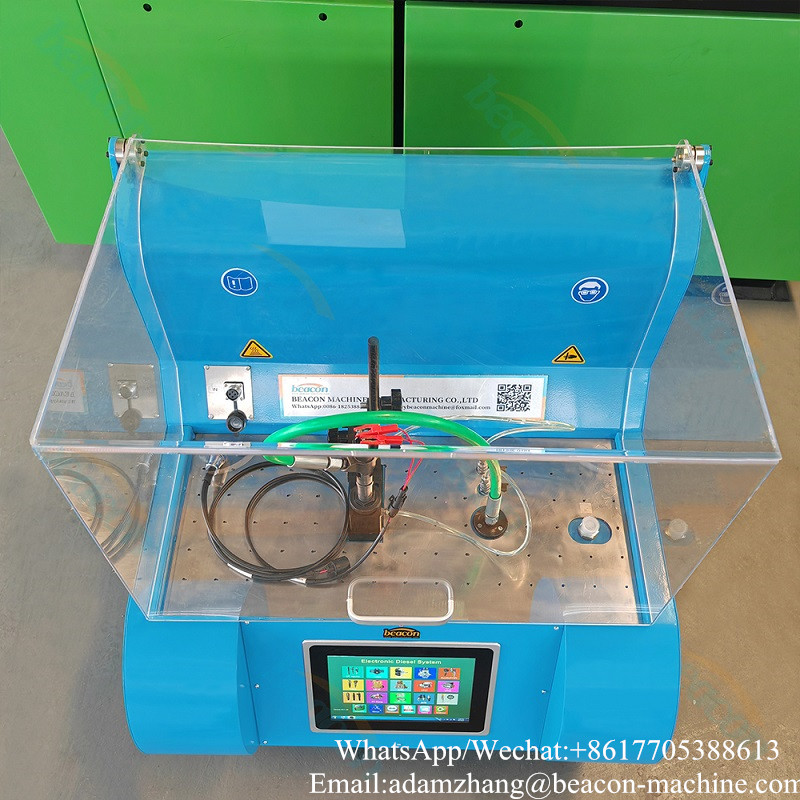

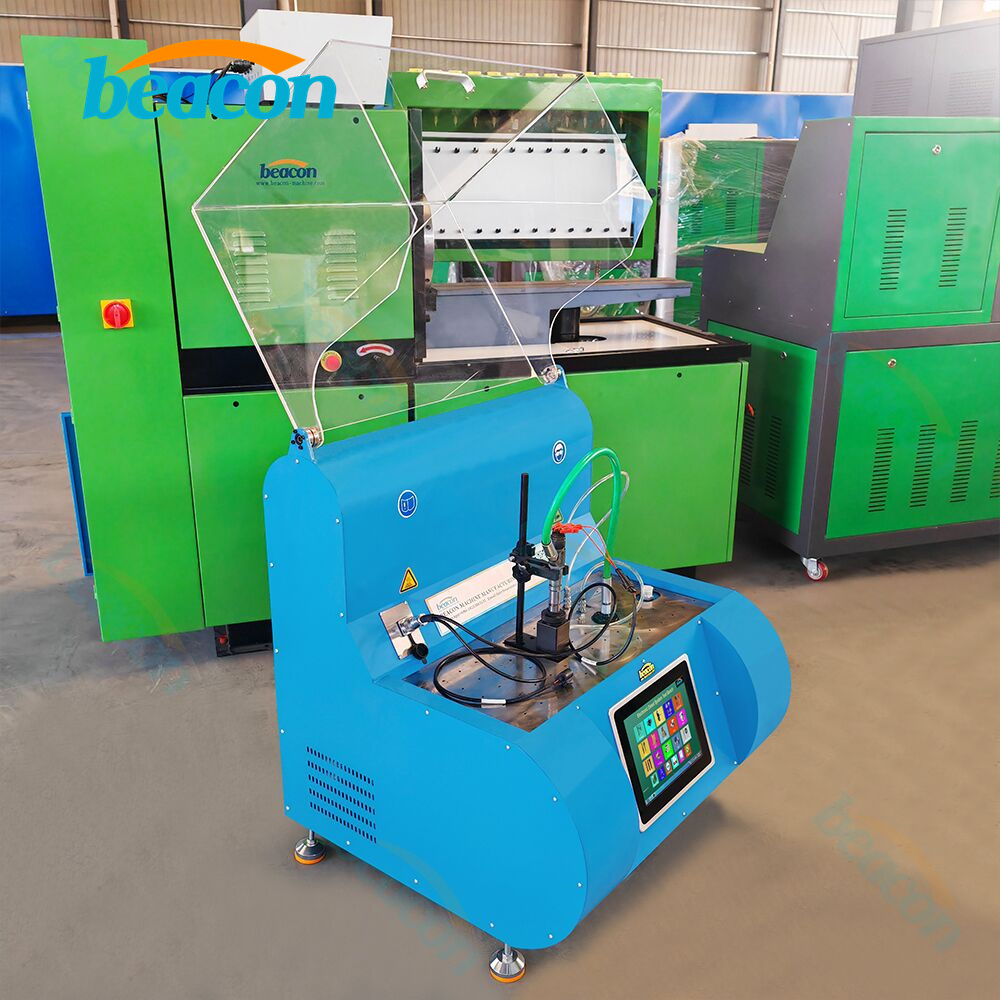

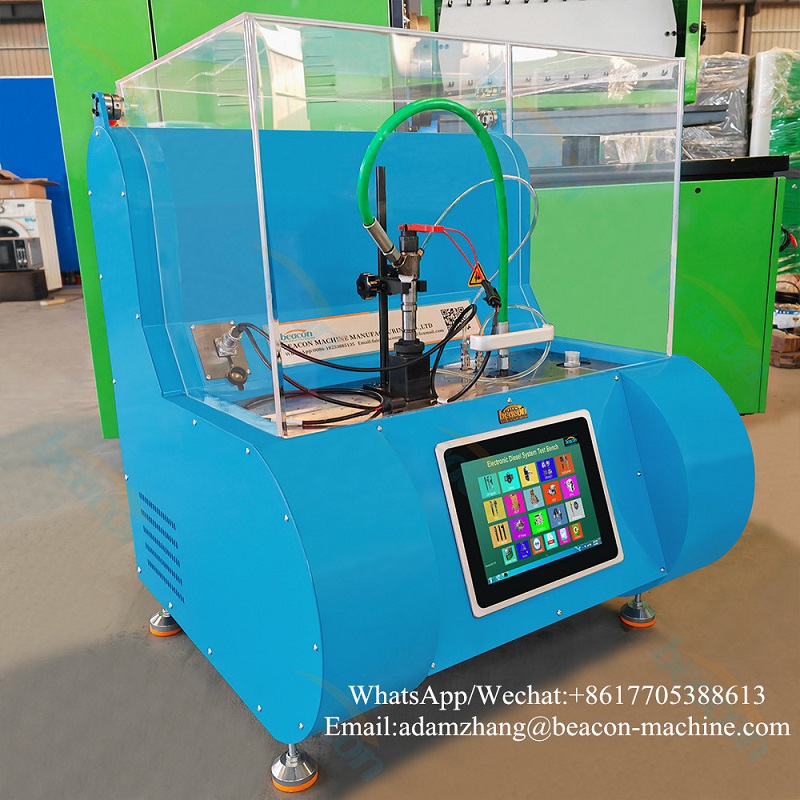

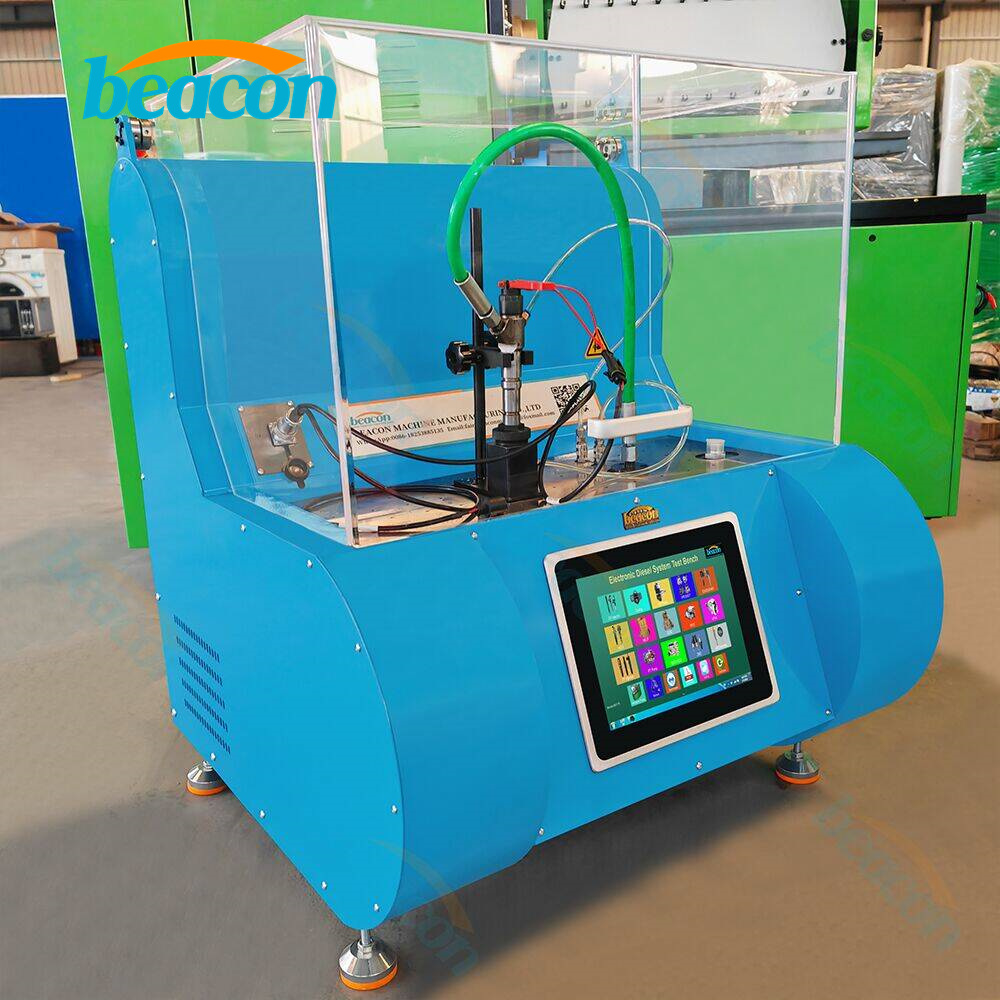

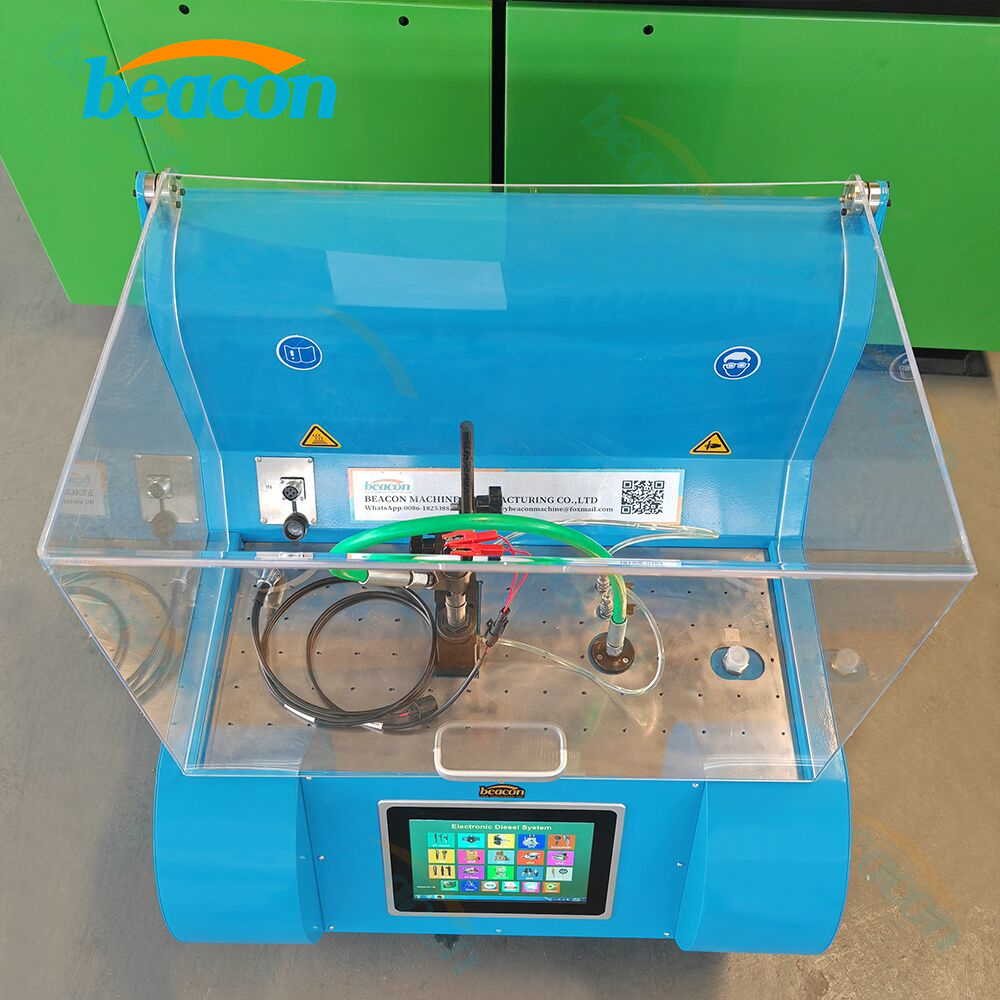

common rail injector test bench
Main functions
The control system of diesel electric jet integrated machine adopts automatic control, which can easily carry out the maintenance test of common rail solenoid valve or piezoelectric fuel injector. It can test thousands of various types of electric fuel injectors, including Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, etc., with complete experimental data.

common rail injector coding machine
Main Features



(1) Integrated automatic operation, including test bench speed, oil rail pressure, flow measurement, report analysis, etc., one-key operation, you can get the measurement results.
(2) Can test Bosch, Delphi, Denso, Siemens, Caterpillar, Cummins, domestic fresh air, north oil, heavy oil and other manufacturers of solenoid valve type or piezoelectric crystal oil injectors
(3) The test standard data is consistent with the original factory data, and the test accuracy reaches the original factory standard;
(4) The database is fully open for operation, and the part number can be added.
(5) Automatic network upgrade, and keep the test data and functions up to date;
(6) Test oil injection response time; (optional)
(7) The fuel injector compensation code can be generated;
(8) The fuel injector resistance injector can be tested
(9) Dynamic travel to test (optional)

Technical parameters

Pressure range
0~200 Mpa
Speed range
0-1500 rpm
Tank volume
10L
Accuracy of test oil filter
3 μ
Heating power
1KW
Heat dissipation power
1KW
Temperature control
40 ± 2℃
Power supply
AC220V, 50 HZ
Output power
2.6KW
Flow sensor Flow range
0.008-4 L/min ± 0.3%
