Your current location:Home >Products >Injector cleaning machine / Beacon Machine Gasoline Injector Cleaner GDI Tester Car motorcycle fuel injector cleaning machine CNC605A
  • Beacon Machine Gasoline Injector Cleaner GDI Tester Car motorcycle fuel injector cleaning machine CNC605A

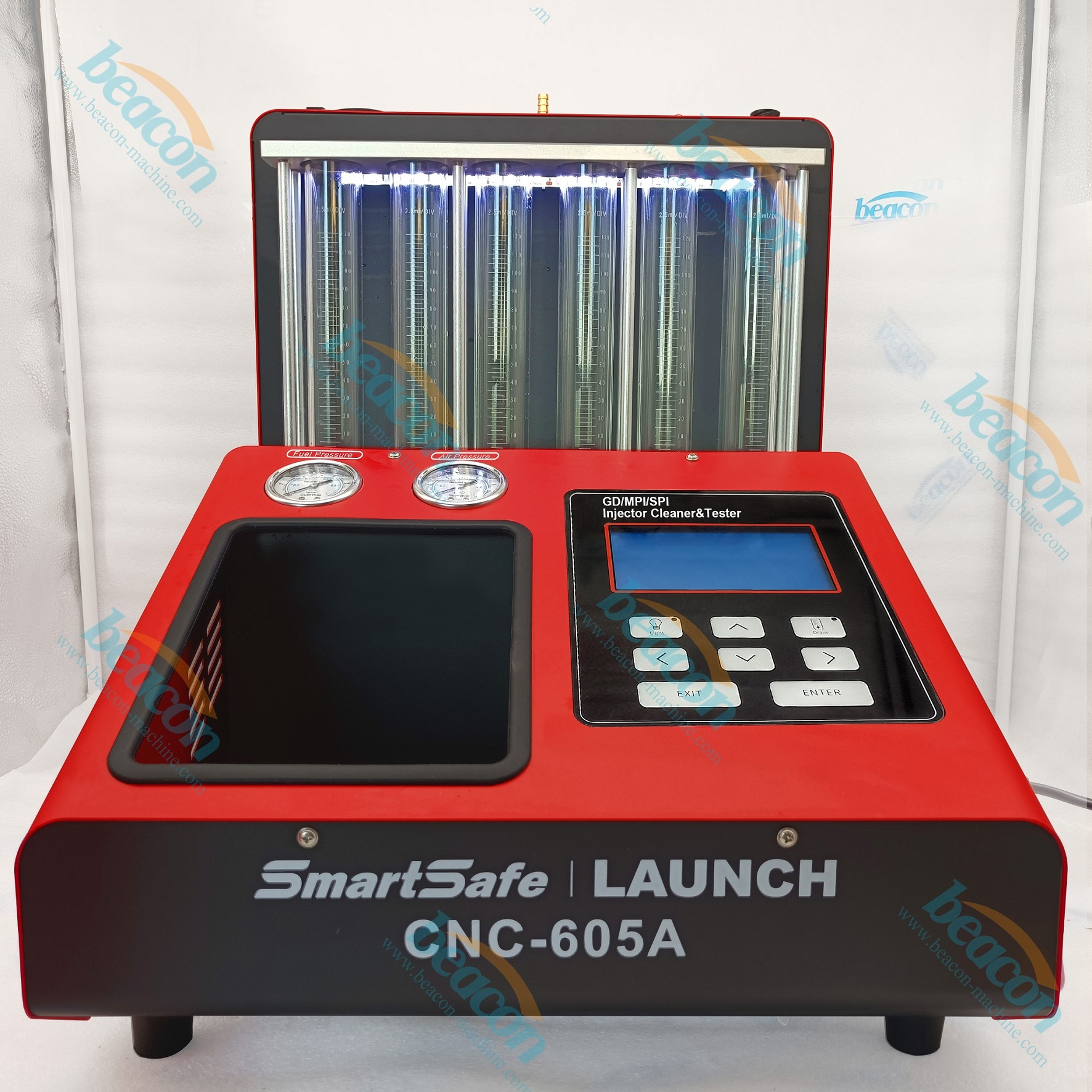

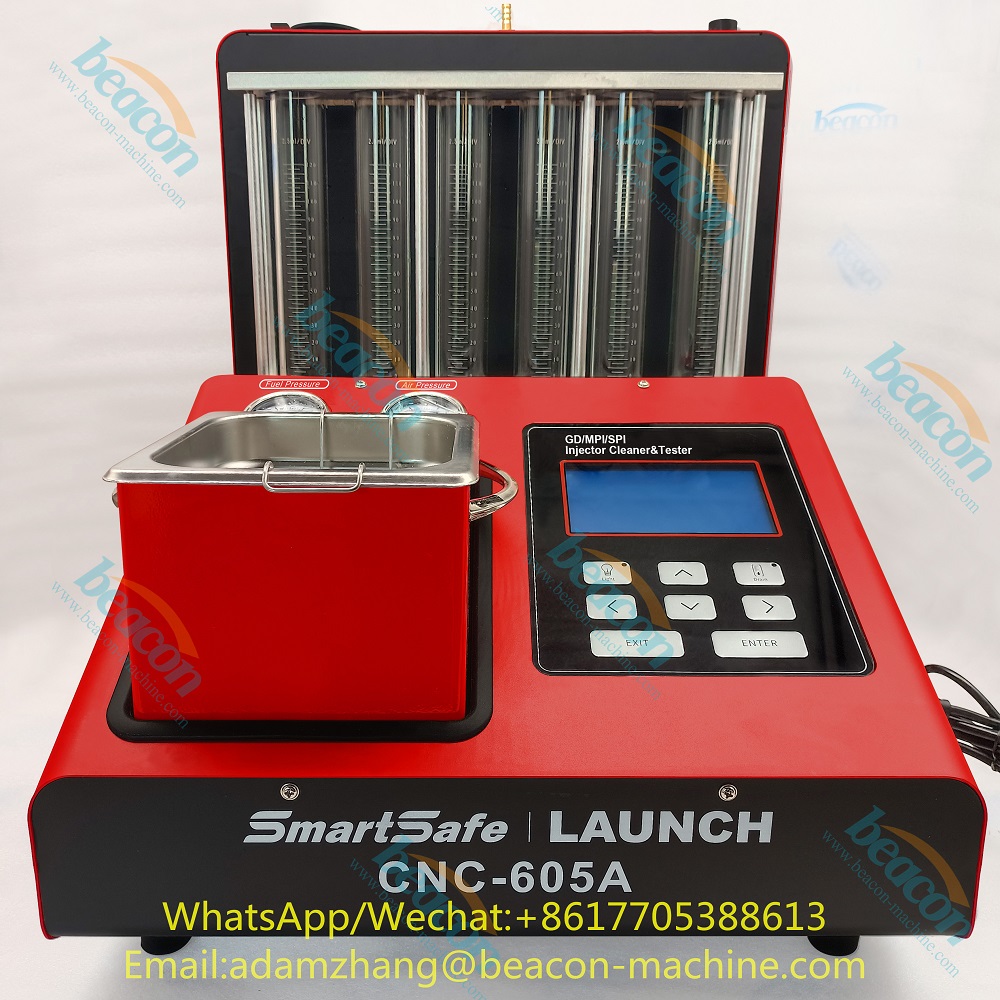

Beacon Machine Gasoline Injector Cleaner GDI Tester Car motorcycle fuel injector cleaning machine CNC605A

Beacon Machine Gasoline Injector Cleaner Tester Car motorcycle fuel injector cleaning machine


Make an inquiry

Injecor Cleaner & Tester with the technology of utrasonic cleaning and fuel pressure control, this equipment is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.


Functions
Ultrasonic cleaning:To clean injectors to remove the carbon deposion on them completely.
Uniformity/Sprayability test:To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.
Leakage test:To test the sealing and dribbling conditions of injectors under system pressure.
Injecting Volume test:To check the injecing amount of the injector in 15 seconds of constant injection.

Auto test:To test injectors by preset program conditions.
On-vehicle cleaning:On-vehicle cleaning to remove the carbon deposition on vehicle,
Setting:To set the system language.
Inquire:To check the equipment usage information.
Information:To check the hardware and soltware version.


Features:
Adopting the powerlul ulrasonic cleaning technology, the equipment oflers complete cleaning to the injectors/pump.
It llers stable testing pressure and large adjustable range contolled through microcomputer,
With the help of microcomputer control and LCD display, the equipment makes possible automatic cleaning, testing injectors and real-time monitoring of the dynamic values.
Automatic fuel draining through preset programs for some test items.
Adopting humanization design can make the system pressure fast restored to the default values.

LCD display to show the operation detalils.
Touch button.

Specifications:
Working conditions:
Temperature: -10~ +40C
Relative humidity: <85%
Intensity of outer magnetic field: < 400A/m
No naked flame within 2m.


Specifications:
Main unit power supply:  AC220V-50/60Hz AC110V-60Hz
Utasonic cleaner power: 60W
Fuel pressure: 0, 1-10bar
Air inlet: 5-8bar
