CR305 diesel fuel injector test bench is used to test common rail injectors and piezo injectors,and it also support injector coding function.It is with the latest common rail diesel system CRS390.It has more than 10000 datas.
0086-18253885135

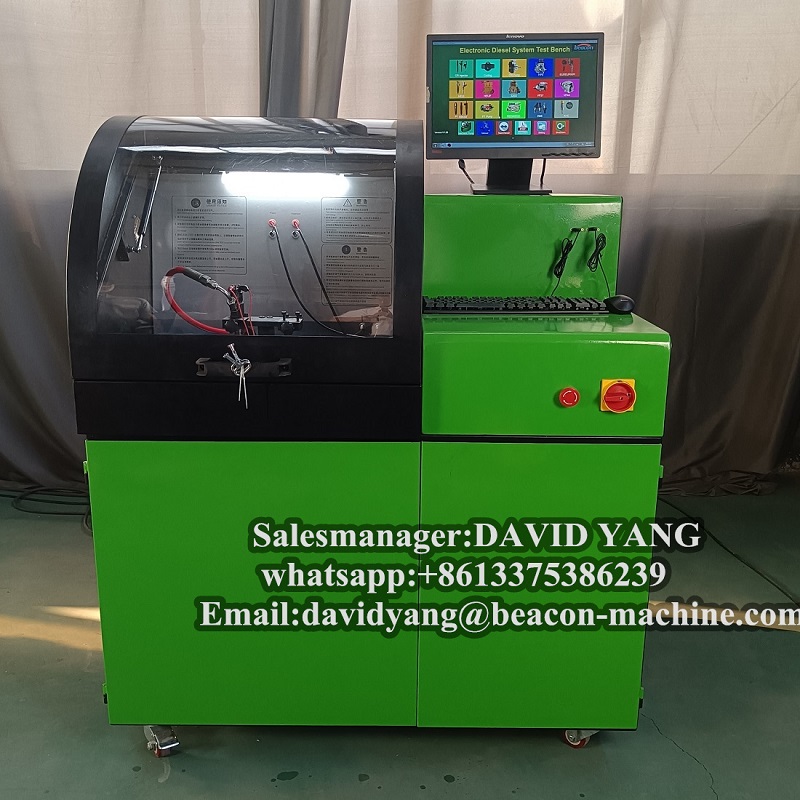

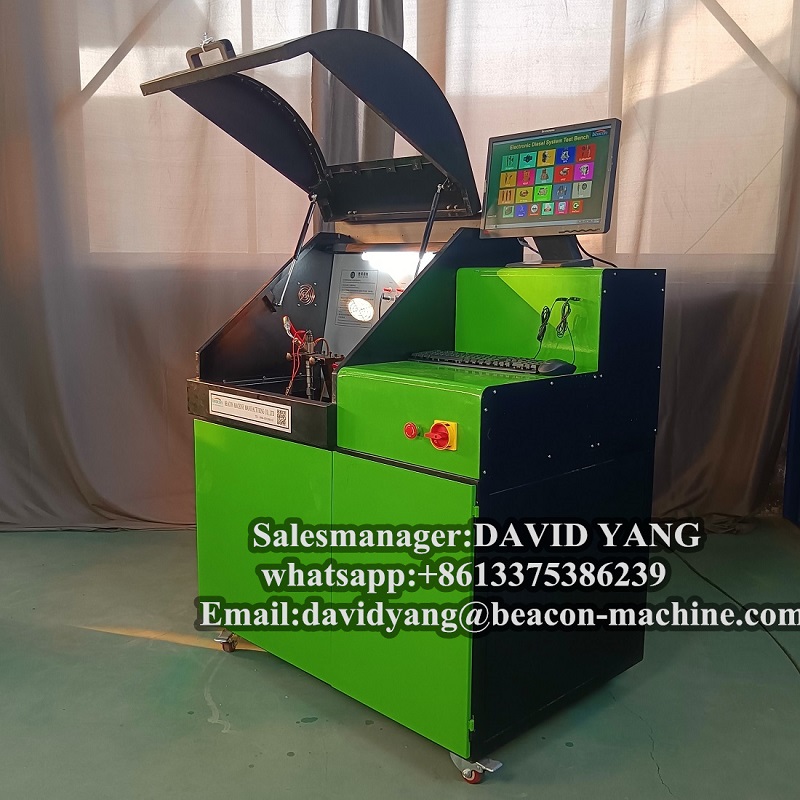

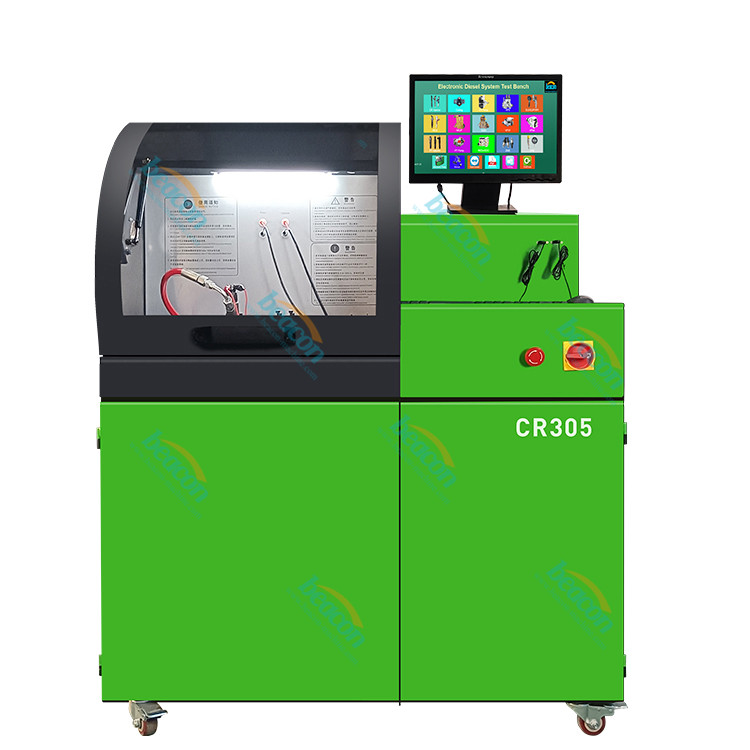

CR305 Common Rail Injector Test Bench
Functions:
1. Test injector brands:BOSCH, SIEMENS, DELPHI, DENSO.
2. Test 1 piece of injector.
3. Test the pre-injection of common rail injector.
4. Test the max. oil quantity of common rail injector.
5. Test the cranking oil quantity of common rail injector.
6. Test the back flow oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the seal performance of common rail injector.
9. Data can be searched and saved.
--
Technical parameters:
Injector opening 0-1000HZ Control accuracy: 1HZ
frequency Control: 0-65535us
Fuel Injector Hold Time Control: 0-1000 times
Delivery Oil Count Control accuracy: 1 times
Fuel pressure control 0-2400bar
Control accuracy: 1bar
Electronic power: 380v /220v 3 phase 220v single phase
Product Size: 1.30*1.0*1.65M
Weight: 360KG
