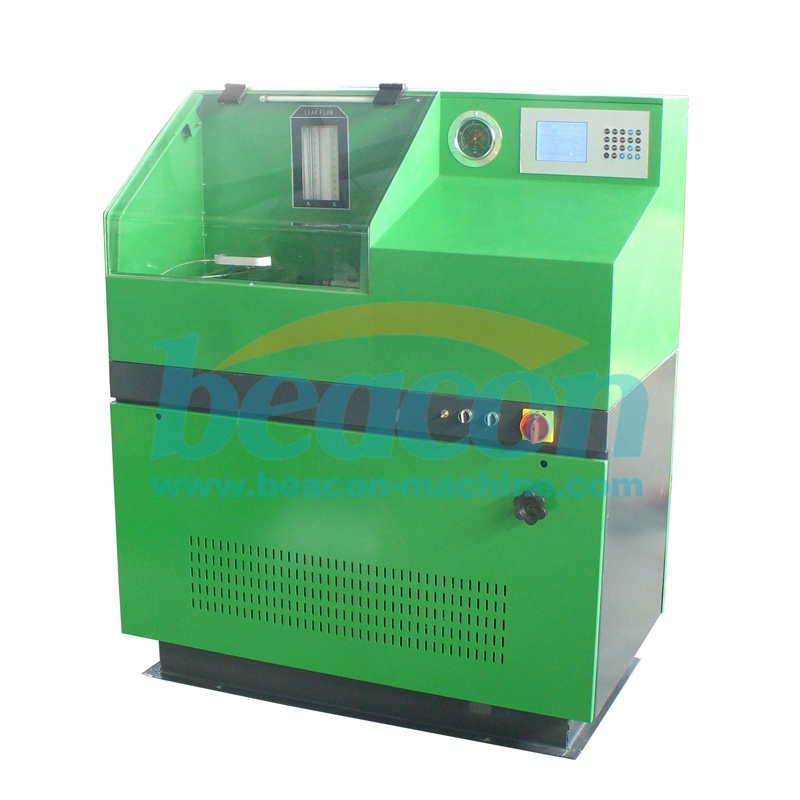

HEUI Injector Test Bench without computer

Beacon Machine HEUI Test Bench is designed to test up to four HEUI injectors


Make an inquiry

Beacon Machine HEUI Test Bench is designed to test up to four HEUI injectors, which are equipped on the following
engines:

1. Detect the fuel injection amount and oil return amount of the common rail injector under the conditions of sealing, full load, medium speed, idle speed and pre-injection;

2. Check the opening pressure of the common rail injector;

3. Check the sealing performance of the common rail injector;

4. Check the atomization quality of the common rail injector;

5. High pressure flushing of common rail injectors.

Second, the characteristics:

1. Built-in common rail injector standard database;

2. Automatic closed loop control of rail pressure;

3. The amount of fuel injection and the amount of oil return are measured by glass volume, with high precision and strong automation.

4, the host variable frequency drive, BOSCH common rail pump oil supply;

5, can detect a variety of brands of common rail injectors, such as Bosch, Denso, Delphi, Siemens, etc.;

6, industrial computer motherboard, embedded windowsXP operating system;

7, mouse operation;

8, pulse power supply 12V/24V automatic conversion;

9, user-friendly interface, more convenient to operate.

Third, technical parameters:

1. Oil supply pressure: 0~240MPa, any setting;

2. Pressure display accuracy: ±0.1 MPa;

3, host power: 380V; 50HZ/220V

4. The stand is made of high-quality steel pipe welded and polished, which is durable.

5, the surface of the gantry is treated with high-grade car paint, which is beautiful and generous.

6. Complete safety protection measures.

7. Spindle speed range: (rev / min) 0-4000 rpm.

8, spindle steering: positive / negative

9. Test the number of injectors: 1.

10, the maximum output power of the spindle: (kW) 4KW

11, high pressure common rail oil supply pressure: (MPa) 0-240

12, the number of oil counts (times): 0-1000.

13, the fuel tank volume: (liter) 20.

14, pulse width setting: (subtle) 0-3000.

15, pressure control: (PID) open loop / closed loop.

16, inverter power: (kW) 4KW

17, fuel control temperature: 40 ± 2 degrees.

18, motor power: (kW) 4KW

19, long 1380 wide 950 high 1400
