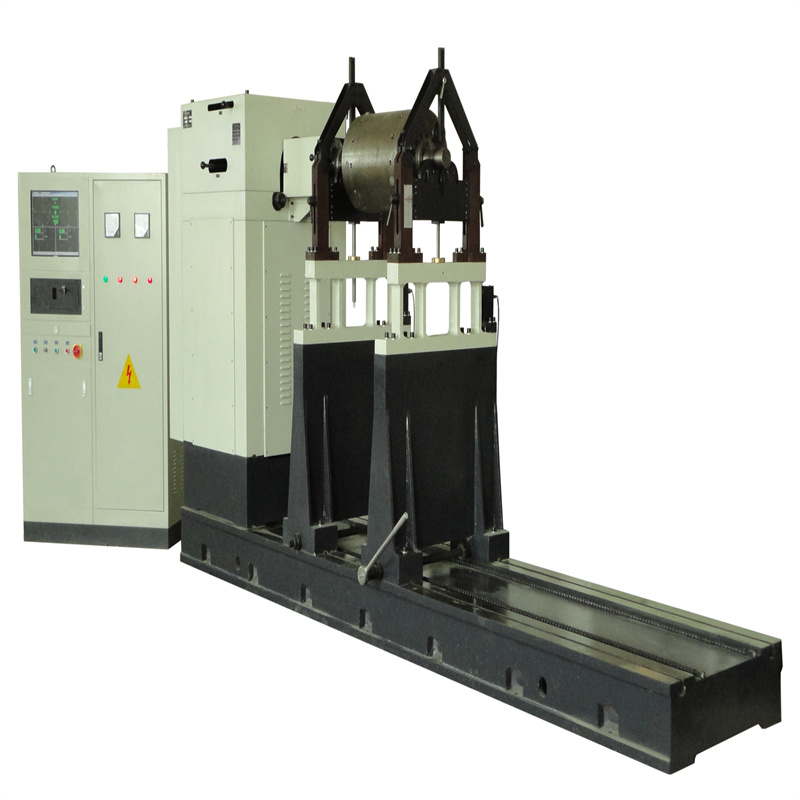

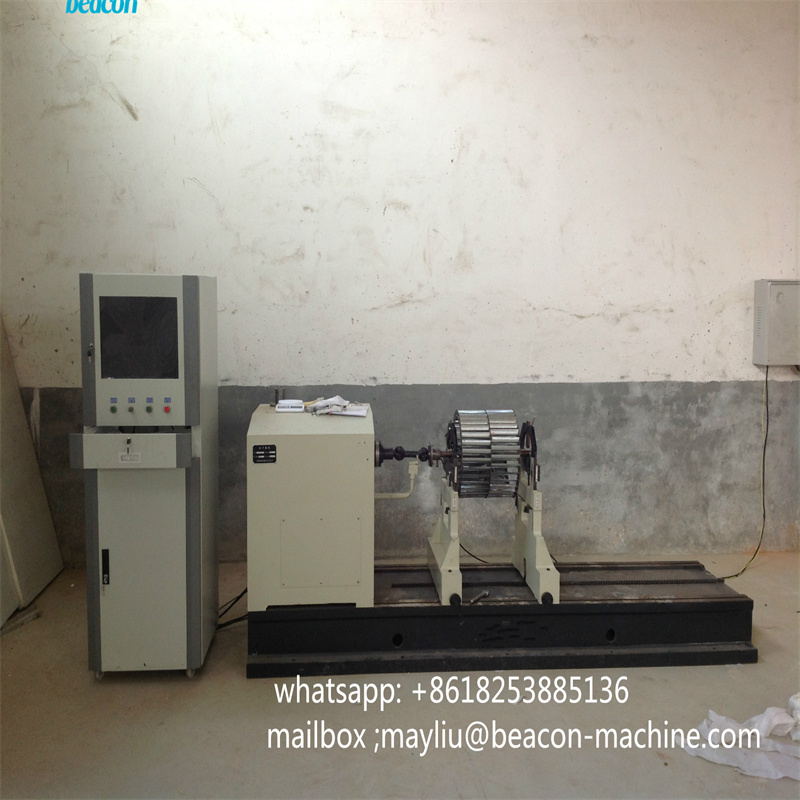

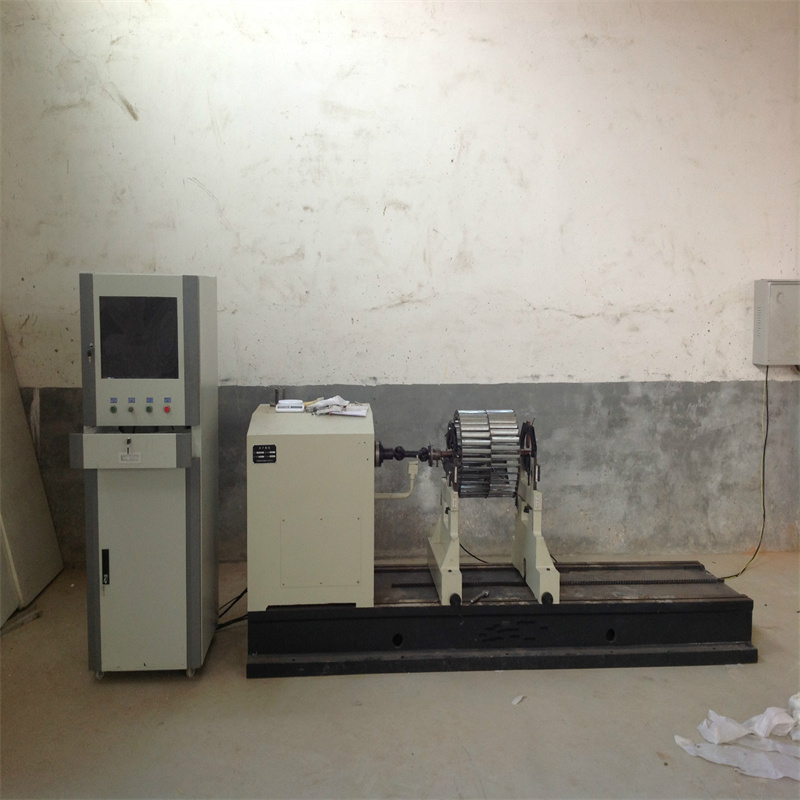

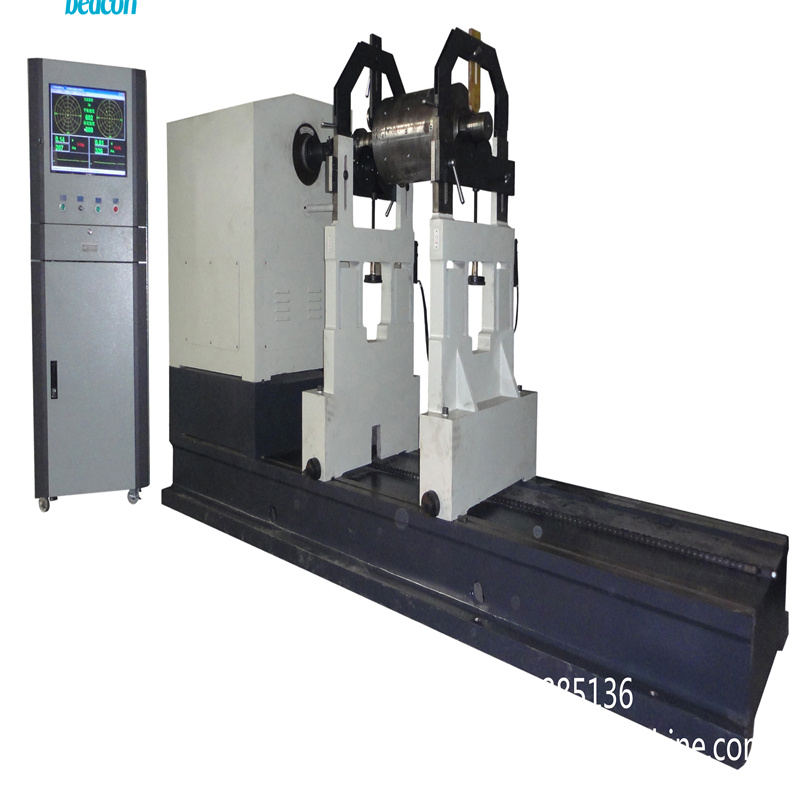

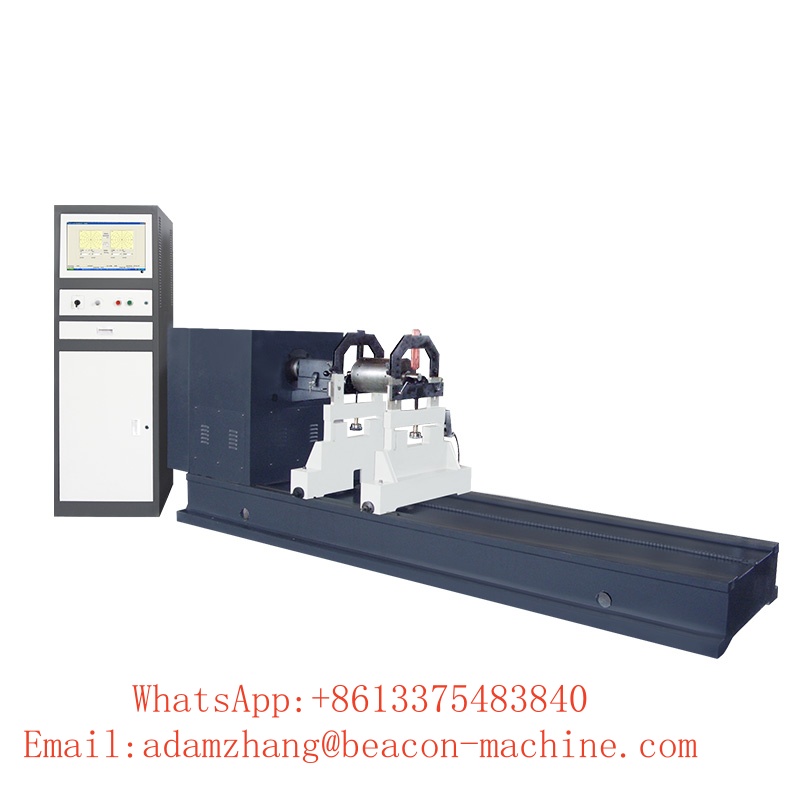

Beacon YYW-500A Dynamic Fan Rotor Balancing Machine Universal Joint Drive Shaft Propeller Dynamic Balancing Instrument Equipment

1. Special designed brackets can effectively transmit mechanical force

2. The durable and reliable sensor possesses high sensitivity
3. The permanent calibration brings high accuracy
4. Driven by universal coupling,transmit the power steadily
5. Applicable to rotors which can't be driven by belt or need large power
6. Advanced electrical measuring system and friendly man-machine interface

7.YYW series are applicable for blower, large-sized motor, pump, centrifuge, rubber roller, drying cylinder, internal-combustion engine etc

Technical Parameters	YYW-160	YYW-300	YYW-500
Maximum weight of workpiece(kg)	160	300	500
Maximum diameter of workpiece(mm)	1000	1200	1500
The distance between two bearing pedestals(mm)	Min60
Distance from coupling flange of drive shaft to center of farthest bearing(mm)	1500
Journal diameter on roller arriages(mm)	10~75 or 75~140	15~75 or 75~180
Spindle speed(r/min)	Variable frequency stepless speed regulation
Motor power(kw)	3		4
Universal coupling torque(N.m)	60
Minimum achievable Rsidual(emar)	≤1g.mm/kg
Unbalance reduction ratio(%)	≥90%
